hand winch
Listing ID#10055352
ModelJC-2000
CategoryOther Farm Machines
Other Farm Machines

hand winch

Specifications

Brand
hand tools
Origin
CHINA
Price Term
FOB
Request Quote
Quick answer

hand winch is a Other Farm Machines product. Key specs — Brand: hand tools; Origin: CHINA; Price Term: FOB.

Product Description

Specifications

Hand Winch
CE CERITIFICATION
EXPORT USA, EUROPE, AUSTRIAIL

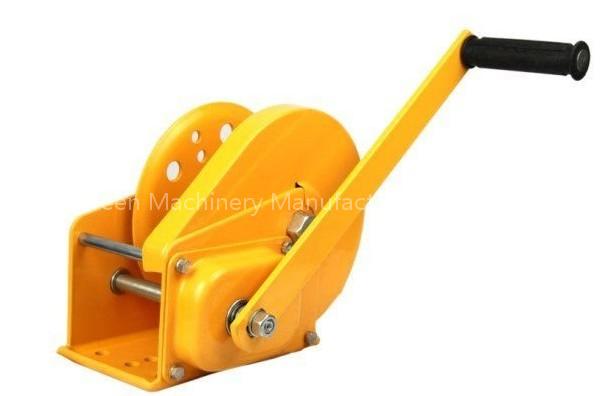

Hand Winch

The WJC type hand winch is small,light ,easy to use fitted with the device of friction braking ,is a kind of light and handy flexible drawing tools,Suitable for automobile,ship mooring, trees, etc.


Stock No.500501200500501800500502600
Model1200LBS1800LBS2600LBS
Safe working load(lbs)120018002600
Test load812.1317.64
Gear ratio4.2:15:110:1
Dimension(mm)-A156203216
Dimension(mm)-B184256293
Dimension(mm)-C88107127
Dimension(mm)-D217319319
Dimension(mm)-E272727
Dimension(mm)-F272283305
Dimension(mm)-G516063
Dimension(mm)-H109109109
Net weight(kg)3.77.710.1
Volume(mm)160×160×220350×200×230350×240×240
Rope length(m)4mm wire rope 35m,nylon rope8m 5mm wire rope 50m,nylon rope10m 5mm wire rope 50m,nylon rope10m
