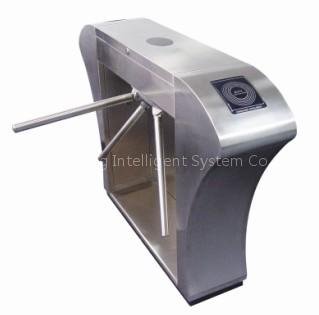

half automatic tripod turnstile

1Size: 1200mm(L)*280mm(W)*960mm(H)

3Power:AC220V input, driven by DC24Vï¼Âˆ1500mAï¼Â‰safe current

4Working Temperature: -20℃~60℃ï¼Â›

5Working Humidity: ≤90%

6Input interface: 12V TTL signal, or 12V pulse signal, width> 100 ms, Driven current>10 mA

7Passing Speed: 30-40 person/minute

8Communication: TCP/IP, RS485/232 optional, distance in RS485< 1200M

9LED high light of direction indication

10 Reader interface: wiegrand 26/34/66, RS 485/232, support many mode, magnetic, EM ID, Mifare one IC, TI, barcode, RF ID and etc.

11 Noise:<50 DB

12 Working times without failure:4 million

13 Weight: < 70KG

Product feature

1 Special Drive system, make turnstile lock very stable and exactly

2 System runs with little noise, no mechanical strike

3 Can set passing mode by software: one way passing after authorization, both way passing after authorization, both way passing without authorization.

4 Lock and alarm when forcing to lock, when illegal interloper push arm in 5Ëš, the arm will

be locked, meantime sound alarm, it will be released when getting valid open signal.

5 Supply many Standard interface like RJ45 /RS485/232 to connect to EM ID, Mifare 1 IC, TI, Magnetic, Barcode, fingerprint, hand, face readers, strong compatibility, easy to system integration.

6 Reading card with memory or without memory optional.

7 Using TCP/IP Protocol, realtime data uploading or manually data upload, easy to data analysis, no data losing when big data or data cash

8 Arm drop when suddenly power off, and supply cascading interface input interface like fire alarm, when sending signal in fire alarm, the arm drop, in case to some emergency situation.

9 Self Examine and alarm hint, easy for user to use and maintain.

10 High light LED of direction indication, Red to show prohibiting passing and Green to show allowing passing.

11 Waterproof and ventilative structure to make mechanism and electrical parts safe and using life, in order to apply in any using condition.

12 Self reset function. When user doesn’t passing in sett time, the system will automatically cancel this passing, the time can be set in software
