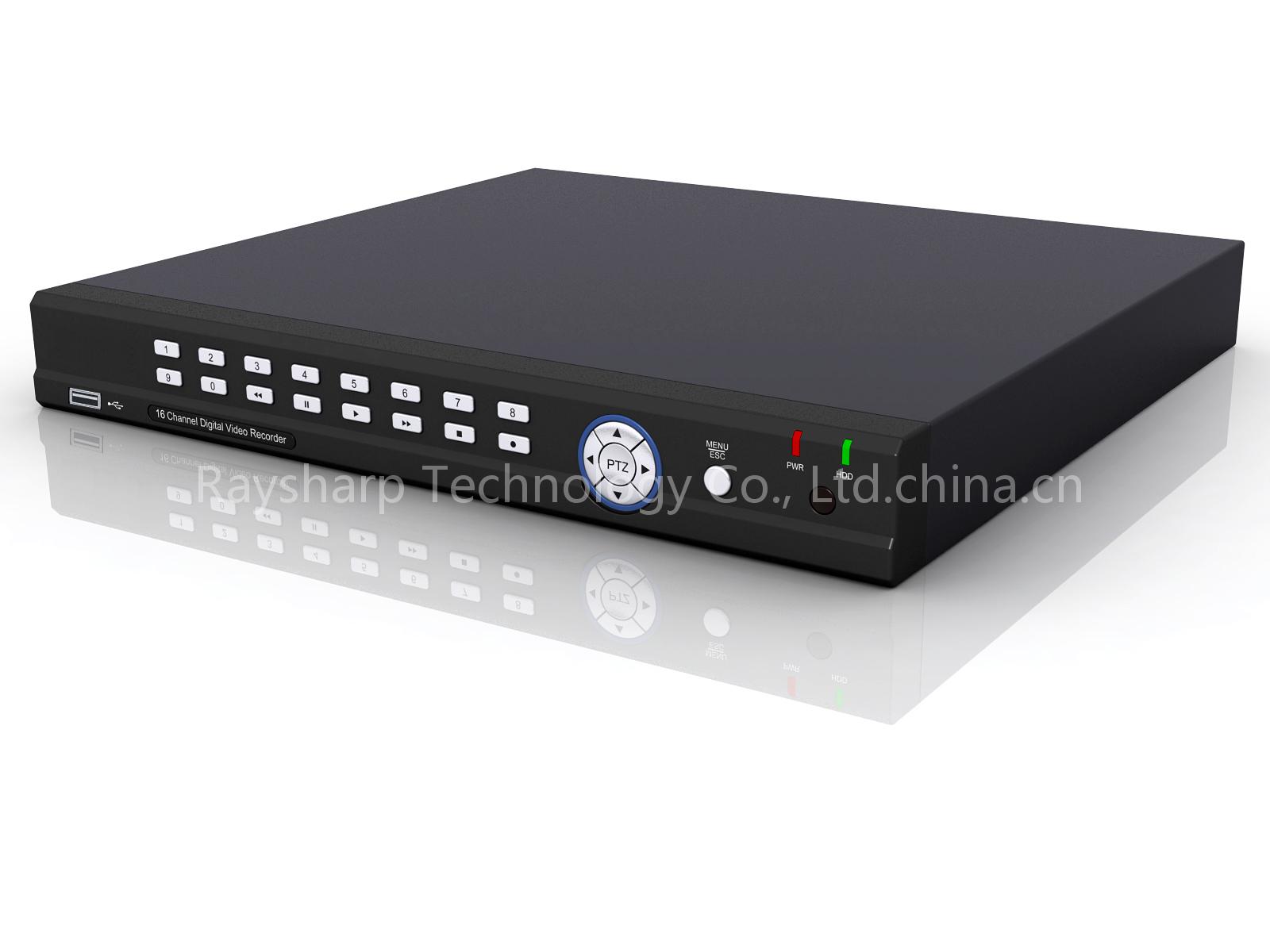

h.264 16ch dvr

FEATURES SPECIFICATIONS H.264 Compression,dual ARM processors Model No.

D9216H Linux Operating System Video Compression H.264 ADPCM Audio Compression Format Video System NTSC / PAL(Switching) Network Transmission Operation System Linux Supports Remote Live Viewing Input / Output Intercom BNC: 1-ch Line In Point to Point Intercom Video BNC 16ch Input/ 2ch output(Vout/Vspot) Multiple Record & Alarm Modes Audio BNC 16ch input/2ch output(Aout/Aspot) Remote Independent Operation Display Resolution D1:704×576(PAL) 704×480 (NTSC);HDMI:1920*1080(optional) Intelligent Motion Trigger Recording Frame Rate NTSC: 480fps / PAL: 400fps (shared by 16 cameras) Supports Event Schedule and Time Search Record Resolution D1/HD1/CIF Remote Alarm Notification via Email Images Frame Rate (PAL),(NTSC), each channel is adjustable 16 CH Real time CIF Recording VGA Included Resolution :800×600,1024×768,1280×1024,1440×900 Supports USB Mouse Operation Recording Quality High / Normal / Low Support up to 2 x 2TB SATA HDDs HDD Interface 2*SATA Fixed HDD / 1*SATA Removable HDD Supports Hiding & Switching Channels HDD Capability 2* 2TB/each With DVR-RW:1*SATA fixed HDD Pentaplex operation: record,playback,backup,network&mobile phone surveillance Monitoring Resolution PAL:D1(704*576)/NTSC:D1(704*480) IE based remote control DVR,support upto 3 remote accesses at the same time Record/Playback resolution D1/HD1/CIF support to send live pictures to appointed email address while alarm triggered Display Frame Rate PAL:400fps/NTSC:480fps Total Recording Frame Rate PAL:/NTSC: IR Remote Control & USB 2.0 Display Mode 1/4/9/16 Screen combinations,Zoom In/Out in Special Area,PIP,SEQ,Cruise Video Loss Alarm Function Recording Pack time 15/30/45/60 mins selectable PTZ function via built-in RS-485 port Recording Mode Always/schedule/motion detection/sensor triggered USB mouse,Backup,Upgrade(USB Flash Disk) Playback 16ch playback simultaneity real time,(PAL)(NTSC), System Auto Recovery After Power Reconnected Playback Search Time & Date / Event List Standard Full HDMI and VGA output, provide you with more lucid, perfect monitor screen Playback Mode Normal /Fast Rewind /Fast Forward / Manual Alarm Mode Motion Detection / Sensor Triggered / Loss Video / HDD Full or Error Support three users view & control DVR through network simultaneously: monitor, playback, PTZ control, DVR parameter setting, data backup, etc Sensor & Alarm 16-ch Sensor Inputs / 1-ch Alarm Output USB 2.0 2 USB2.0 port support Backup or Upgrade / Mouse / Removable HDD PTZ Interface Built-in RS-485 Port HEXAPLEX operation PTZ Control PELCO-P / PELCO-D Protocol, Local / PC / Mobile Phone Control Optional 1/4/9/16-ch playback for video and audio at same time, more convenient and comprehensive Network Interface RJ-45 10M/100M Network Protocol TCP/IP, UDP, SMTP, DHCP, DNNS, PPPoE Support access to a variety of centralized management platform Network Frame PAL: LAN: ,INTERNET :LAN:),INTERNET Support keyboard cascades, easy to control in the manipulation of multiple DVR Network Function IE Viewer / Live Monitoring / DVR Setting / Mobile & Email Function/ NTP funtion Mobile Software Symbian,WinCE,Blackberry,Ipone,google android Support access to a variety of centralized management platform Mobile Function 1 Channel Viewer / Channel Switch / Control PTZ Backup USB 2.0 flash drive ; Network(AVI format ) ; USB DVD write Graphical OSD,with USB mouse control Pre-recording through Alarm Support 10s pre-record Remote Mobile Phone Monitoring Sensor&Alarm I/O 16 sensor inputs/1 alarm output 　 Working Temperature 10℃ - +40℃ 　 Working Humidity 10% - 90% 　 IR Remote / Mouse Included 　 Power Supply DC12V / 5A 　 Dimension 431 x 395 x 72.8mm 　 CD/DVD-RW Optional
