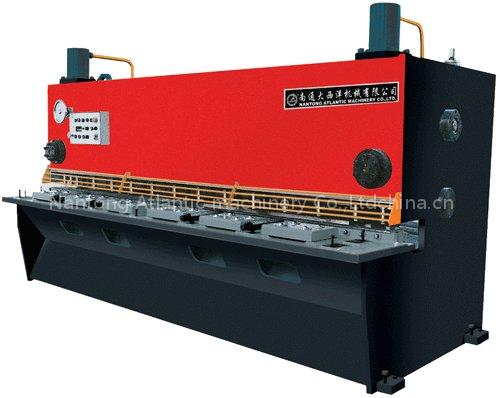

guillotine shearing machine
Specifications
- Brand
- WSD
- Origin
- Haian,China
guillotine shearing machine is a Business Services product. Key specs — Brand: WSD; Origin: Haian,China.
Product Description
Shearing machine -hydraulic guillotine shearing machine
Product Description
* It adopts hydraulic driving, the frame steelwelded structure which has sufficient strength and rigidity.
* The machine is equiped with a power back gauge on which, a manual fine-adjusting, mechanism for blade clearance, a shadw light device enribing cutting operatikon, a counter, a sensitive and reliable safety barrier.
* It can also be equipped with a support conveyor.
* Whole steel welded frame with full strength and rigidity.
* Hydraulic upper transport.
* Hydraulic press device with reliable safety bar.
* Rapid cutting stroke adjustment is adopted, shearing angle can be adjusted to ensure priduction efficiency being increased when cutting short sheet.
* Back-gauge station adopts motor-driven measure with fine manual adjustment.
* Cutting counter device.
* Light line device so it is easy to draw line for cutting
Models we did export before
| Model | Maximum shearing thickness mm | Maximum shearing width mm | Shearing angle mm | Plate strength N/m2 | Back gauge range mm | Main motor kw | Dimension (LXWXH) mm | Weight kg |
| QC11Y-8X4000 | 8 | 4000 | 0.5°-2° | 450 | 800 | 11 | 4620X1800X2050 | 9500 |
| QC11Y-8X6000 | 8 | 6000 | 0.5°-2° | 450 | 800 | 15 | 6700X2050X2500 | 19800 |
| QC11Y-12X2500 | 12 | 2500 | 0.5°-2.5° | 450 | 1000 | 18.5 | 3180X1800X2100 | 8200 |
| QC11Y-12X3200 | 12 | 3200 | 0.5°-2.5° | 450 | 1000 | 18.5 | 3980X1950X2310 | 11800 |
| QC11Y-12X4000 | 12 | 4000 | 0.5°-2.5° | 450 | 1000 | 18.5 | 4780X2000X2400 | 15500 |
| QC11Y-12X6000 | 12 | 6000 | 0.5°-2.5° | 450 | 1000 | 30 | 6800X2500X2950 | 28000 |
| QC11Y-16X2500 | 16 | 2500 | 0.5°-2.5° | 450 | 1000 | 22 | 3280X1900X220 | 10000 |
| QC11Y-16X3200 | 16 | 3200 | 0.5°-2.5° | 450 | 1000 | 22 | 3980X2000X2425 | 13500 |
| QC11Y-16X4000 | 16 | 4000 | 0.5°-2.5° | 450 | 1000 | 22 | 4780X2200X2520 | 17800 |
| QC11Y-16X6000 | 16 | 6000 | 0.5°-2.5° | 450 | 1000 | 30 | 6800X2600X3050 | 35000 |
| QC11Y-20X2500 | 20 | 2500 | 0.5°-2.5° | 450 | 1000 | 30 | 3300X2000X2380 | 14000 |
| QC11Y-20X3200 | 20 | 3200 | 0.5°-2.5° | 450 | 1000 | 30 | 4000X2280X2490 | 17000 |
| QC11Y-20X4000 | 20 | 4000 | 0.5°-2.5° | 450 | 1000 | 30 | 4800X2500X3000 | 28000 |
| QC11Y-25X2500 | 25 | 2500 | 0.5°-2.5° | 450 | 1000 | 37 | 3400X2300X2750 | 19000 |
| QC11Y-25X3200 | 25 | 3200 | 0.5°-2.5° | 450 | 1000 | 37 | 4100X2400X2580 | 24000 |
| QC11Y-32X2500 | 32 | 2500 | 0.5°-3° | 450 | 1000 | 37 | 3400X2400X2850 | 22000 |
| QC11Y-32X3200 | 32 | 3200 | 0.5°-3° | 450 | 1000 | 37 | 4100X2550X3000 | 28000 |
| QC11Y-40X2500 | 40 | 2500 | 1°-3.5° | 450 | 1000 | 45 | 3400X2600X3100 | 29000 |
is a jointed venture with investment from HongKong and Germany,founded in 1969,which specialized in making machines for sheet shearing and bending ."Atlantic"brand machines have a good reputation at home and abroad ,machines produced here are with DIN standard. Details of our company: 0086-13584714567Product Trademark: "Atlantic" Products we can supply Shearing machineã€Press brakeã€Rolling machine〠cut to length line Standard: Germany Productivity: 55 Sets per month Contact person Xiaohua Shen (Mr.Allen Shen)
Here we can ensure good quality and reasonable price machines for you .Welcome your arrival and looking forward to cooperating with you !
