groove t grid( cross tee, galvanized steel t grid,ceiling bar, tee grid, main tee):

1. The standard sizes see the chart below .

2. We can produce to customers specifications as below :

- Raw materials : ZINC coating from 80 to 275 gram per square meter , also can use the stainless steel mirror or aluminum mirror .

- Thickness : Form 0.25mm to 0.40mm .

- Dimension :

Length : Main Tee up to 3.75 meters ,Cross Tee up to 1.22 meters ,

Width : From 15mm to 23mm and Hight from 24mm to 32mm .

We can produce any size to meet and install your ceiling .

- Colour : The surface is white , but for the groove , there are many colours can be chose , such as black , red , blue , grey , etc.

STANDARD SIZE FOR FLAT SURFACE T GRID SYSTEM

Item	Description	Width (mm)	Hight (mm)	Thickness (mm)	Length
1	U23 MAIN TEE	23	32	0.25~0.40mm	up to 3.75 meters
			29	0.25~0.40mm	up to 3.75 meters
			24	0.25~0.40mm	up to 3.75 meters
	U23 CROSS TEE	23	32	0.25~0.40mm	up to 1.22mmm
			29	0.25~0.40mm	up to 1.22mmm
			24	0.25~0.40mm	up to 1.22mmm
2	U17 MAIN TEE	17	32	0.25~0.40mm	up to 3.75 meters
			29	0.25~0.40mm	up to 3.75 meters
			24	0.25~0.40mm	up to 3.75 meters
	U17 CROSS TEE	17	32	0.25~0.40mm	up to 1.22mmm
			29	0.25~0.40mm	up to 1.22mmm
			24	0.25~0.40mm	up to 1.22mmm
2	U15 MAIN TEE	15	32	0.25~0.40mm	up to 3.75 meters
			29	0.25~0.40mm	up to 3.75 meters
			24	0.25~0.40mm	up to 3.75 meters
	U15 CROSS TEE	15	32	0.25~0.40mm	up to 1.22mmm
			29	0.25~0.40mm	up to 1.22mmm
			24	0.25~0.40mm	up to 1.22mmm

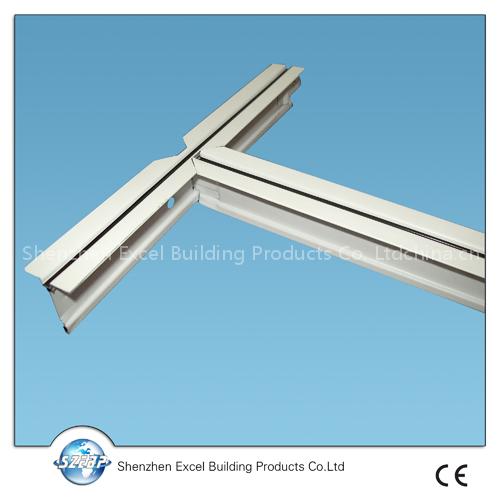

groove T grid

Specifications
