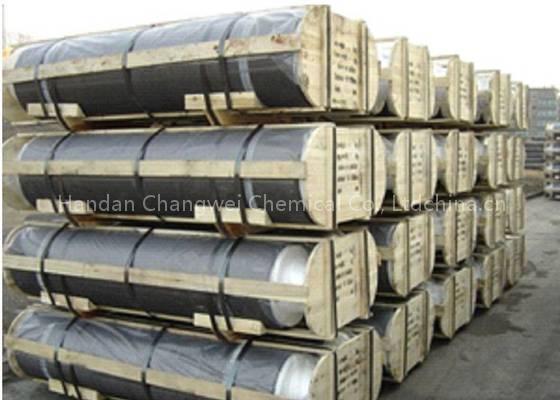

graphite electrode is a Auto Electronics product. Key specs — Origin: China.
Product Description
Grade: RP,HP,SHP,UHP graphite electrodes
Diameter: 50~ 600 mm (2 ~ 24 inch)
Length: according to clients' requirements standard length 1800mm
Diameter: 50~ 600 mm (2 ~ 24 inch)
Length: according to clients' requirements standard length 1800mm
ITEM | Regular Power | High Power | Ultra High Power | ||||
Unit | 150-200mm | 225-350mm | 400-500mm | ||||
Electrical Resistance (max) | Electrode | μΩ-m | 8.0 | 8.0 | 8.0 | 7.0 | 6.0 |
Nipple | 6.5 | 6.5 | 6.5 | 5.5 | 5.0 | ||
Bending Strength (min) | Electrode | Mpa | 11.0 | 11.0 | 9.0 | 12.0 | 12.0 |
Nipple | 14.0 | 14.0 | 14.0 | 14.0 | 16.0 | ||
Elastic Modulus (max) | Electrode | Gpa | 9.0 | 9.0 | 9.0 | 12.0 | 12.0 |
Nipple | 12.0 | 12.0 | 12.0 | 14.0 | 14.0 | ||
Bulk Density (min) | Electrode | g/cm3 | 1.58 | 1.58 | 1.58 | 1.68 | 1.68 |
Nipple | 1.70 | 1.70 | 1.70 | 1.72 | 1.75 | ||
C.T.E (max) | Electrode | ×10-6/ | 2.7 | 2.7 | 2.7 | 2.5 | 2.4 |
Nipple | 2.5 | 2.5 | 2.5 | 2.2 | 2.0 | ||
Ash (max) | % | 0.3 | 0.3 | 0.3 | 0.3 | 0.3 | |
