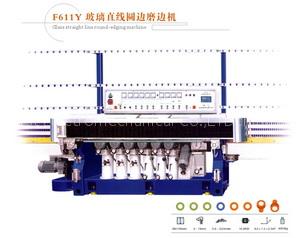

glass straight-line pencil edging machine

Processing speed :0.6~6.0m/min

Max.capacity processing:3mm

Min.glass processing size :100x100mm

Glass thickness:3~19mm

Total power:16.9 kw

overall dimension:6500*1500*2500mm

Weight:4000kg

Machine brief description:

This machine is suitable for rough grinding , fine grinding , polishing of beveling edge and grinding of bottom edge . The convey section adopts roll bearing structure to make sure the processing more stability . The rear guide rail with lift technology , and it will be increase the processing area .

This machine install self-grinding rear chain pad . With automatic and manual lubricating system to keep the machine can working well under lubricating conditions , and extend the service life . Rear guide rail install automatic washing machine , it can cleaning the rear chain pad during processing .

The electrical control system adopt import electronic component , and this machine controlled by manual or automatic through PLC . The Human-machine interface will display the processing glass thickness , bevel angle , bevel width and surplus thickness etc . The processing speed controlled by frequency inverter
