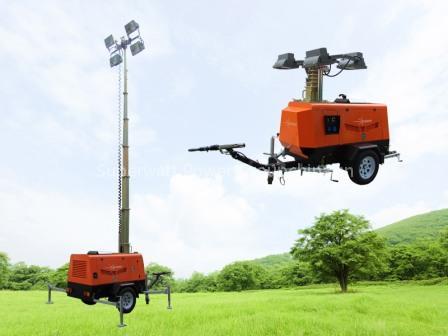

generator mobile lighting tower

Superwatt's lighting tower with the feature of diversification, high reliability, simple operation and easy maintenance is widely used in the area of construction, mining, rent, public facility repair, big events, accident handling, and rescuing etc.

"KL" series is the most powerful among superwatt lighting towers. It is highly reliable with hydraulic mast and six floodlights which can be easy controlled to adjust the illuminated area.

Specification:
(1)Engine:
Brand: Kubota/Yanmar/Perkins
Frequency: 50Hz/60Hz
Speed: 1500rpm/1800rpm
Continued Power: 12KVA-22KVA

(2)Alternator:
Type: Blushless & single phase;
Insulation level: H
Rating Voltage: 230V

(3)Others:
Acoustic pressure: Under 75 dB(A) at 7 meters
Fuel tank capacity: 133 liters
Fuel tank operate hours: 40hours/60hours
Type of lamp: Metal halide floodlight
Number & Power of lights: 6X1000kW/6X1500kW
Mast Height: 9.8/9.7m
Mast Lifting & Extension: Hydraulic operation
Mast Rotation: 180 degree Hydraulic operation
Light bar tilt: Hydraulic extending & 90 degree Electric operation.
