Listing ID#10137071
ModelG1.6
CategoryAuto Meter
Quick answer

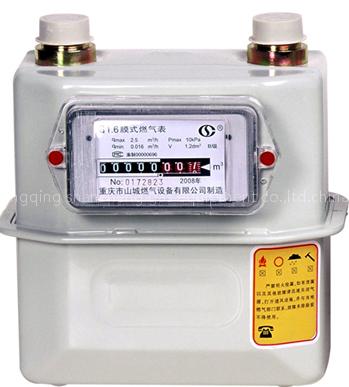

gas meter G1.6 is a Auto Meter product. Key specs — Origin: chongqing,china.
Product Description
Normal flow rate:1.6m3/h
Max. flow rate:2.5m3/h
Min. flow rate:0.016m3/h
Permissible Error:qmin≤q<0.1qmax ±3%
0.1qmax≤q≤qmax±1.5%
Working Pressure:0.5 -- 50 Kpa
Pressure Loss : ≤50 Pa
Cyclic volume :1.2 dm3
Distances between entrance and exit :130mm
Max. Reading:99999.999 m3
Min. Reading:0.2dm3
Ambient Temperature:-10 ~+40℃
Net Weight:2kg
