gas cutting machine

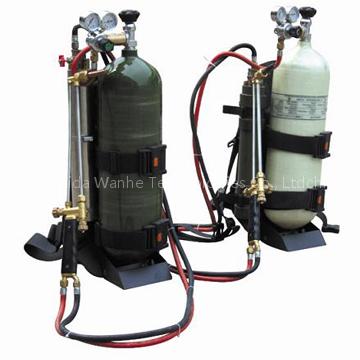

DHK1-QG4-2L single knapsack type flame metal cutter integrates oxygen, fuel storage and cutting device, which is suitable for cutting and dismantle operation of various constructions composed of high, medium and low carbon steel and alloy steel, including road pile, wall, roof, protective door and vehicle and so on; the effective cutting depth can reach 300mm; the weight of this product is light and it by object, and the speed is fast, efficiency is high; the product can be used for emergency danger release and elimination, operation in high place and narrow space; moreover, the product can also plays a good role for public security, fire-fighting, criminal investigation, traffic accident executive department to shorten dismantle operation time, decrease and reduce losses due to disaster and enhance emergency operational capacity. This product is awarded 2006 Military Science and Technology Third Prize, and it has been applied for military service.



Primary parameters and technical performance
Product cutting scope: carbon steel and alloy steel
Fuel label: regular gasoline
Rated oil quantity (L): 1
Oxygen nominal pressure (MPa): 0.5MPa
Cutting depth (mm): 300
Maximum working height (m): 3
Ambient temperature of operation (℃): -20～50
Noise sound level of operation (dB): ≤54
Dust concentration of operation (mg/m3): ≤2
External dimension (mm): 670×270×250
Net weight of complete machine (Kg): 9
