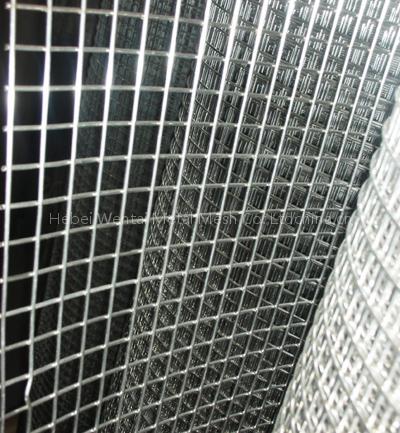

galvanized welded wire mesh

1.material:low carbon /stainless steel wire 2.wire gauge (BWG):14# -23# 3.width: 3', 4', 5', 4..Varieties available according to processing and finish treatment: · Welded wire mesh, galvanized before weaving · Welded wire mesh, galvanized after weaving · Welded wire mesh, thermal electroplated · Welded wire mesh, PVC coated 5.Use:industry and agriculture building,transportation and mining for all such purpose as poultry houses,egg basket,runway enclosures,draining rack,fruit drying screen,fence Specification List of Welded Wire Mesh Opening Wire Diameter In inch In metric unit(mm) 1/4" x 1/4" 6.4mm x 6.4mm 22,23,24 3/8" x 3/8" 10.6mm x 10.6mm 19,20,21,22 1/2" x 1/2" 12.7mm x 12.7mm 16,17,18,19,20,21,22,23 5/8" x 5/8" 16mm x 16mm 18,19,20,21, 3/4" x 3/4" 19.1mm x 19.1mm 16,17,18,19,20,21 1" x 1/2" 25.4mm x 12.7mm 16,17,18,19,20,21 1-1/2" x 1-1/2" 38mm x 38mm 14,15,16,17,18,19 1" x 2" 25.4mm x 50.8mm 14,15,16 2" x 2" 50.8mm x 50.8mm 12,13,14,15,16 Technical Note: 1,Standard roll length: 30m;width: 0.5m to 1.8m 2,Special sizes available at request 3, Packing: in waterproof paper in rolls.

Custom packing available at request.

Galvanized Fencing Mesh Opening Wire Diameter In inch In metric unit(mm) 2" x 3" 50mm x 75mm 2.0mm,2.5mm,1.65mm 3" x 3" 75mm x 756mm 2.67mm,2.41mm,2.11mm,1.83mm,1.65mm 2" x 4" 50mm x 100mm 2.11mm,2.5mm 4" x 4" 100mm x 100mm 2.0mm,2.5mm Technical Note: 1,Standard roll length: 30m;width: 0.5m to 1.8m 2,Special sizes available at request 3, Packing: in waterproof paper in rolls.

Custom packing available at request.
