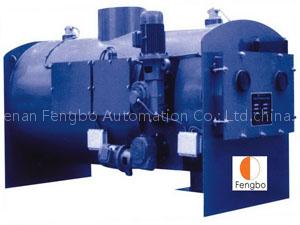

full-closed gravimetric coal feeder

※Product Introduction: FB-JGC full-closed gravimetric coal feeder is a kind of advanced boiler coal feeding device for continuous weighing and automatically regulating the feeding amount. Besides, this coal feeder has advanced electronic weighing and control system to accurately and dynamically measure coal feeding and regulate the coal feeding amount according to the fixed value to make the thermal value of the boiler match the thermal value required so as to achieve the effect of energy saving and economic andwithout any environment pollution. This product canbe widely used in metallurgy industry, chemical industry and building material industries etc. ※Working Principle: The coal in the bunker goes into the feeder through coal gate and is transmitted to the next equipment by the belt inside the coal feeder. Electrical weighing device is installed under the conveyor belt, when the material works on the belt, it can generate a signal in proportion to the material weight. The signal is transmitted to the controller. At the same time, speed sensor installed on the tail pulley detects the belt speed and generates a signal which is also transmitted to the controller. By multiplying the weight signal and the speed signal, the instantaneous flow rate and total accumulation can be calculated. The control system compares the actual flow signal with the set flow signal and then regulates the output signal through PID to adjust the belt speed dynamically and thus to meet feeding requirements. ※Product

Features: 1,Reliable electrical weighing device: unique structure and reliable weighing; 2,FB-DACS2000 control system, SPL-F microcomputer centralized control system, PLC control system are optional; 3,Barrel type sealing structure to improve pressure-resistance and reduce the internal dust accumulation; 4,Adopt variable frequency control mode to make the operation stable and the energy saved. 5,The high-feet belt with skirts has the unique take-up device to keep constant tension and to make the weighing system in best conditions. 6,Unique deviation-proof and alignment devicesensure the stable run of the belt; 7,The chain scraper is adopted for cleaning of internal accumulated coal. 8,The blockage alarm device is installed inside to find and clear away the blockage in time; 9,Perfect alarming devicekeeps close watch on running statue and ensures the system operate reliably; 10,Inspection opening is equipped and explosion-proof lamp is installed inside to watch the coal feeder operation conveniently; 11,Coal feeding air-lock device can be chosen at the outlet to prevent backflow of the hot air which is safe and easy to check and repair. ※Main Technical Parameters Weighing Accuracy: ±0.5% Conveying

Capacity: 1~1000 t/h Belt

Width: 500~1400 mm Feeding Distance: ≥1500 mm Speed Range: 0.01~1.5 m/s Power Range: 0.37~10 kw Alarm Contact Point: temperature, blockage alarm, deviation alarm (contact rating: AC220V 5A)
