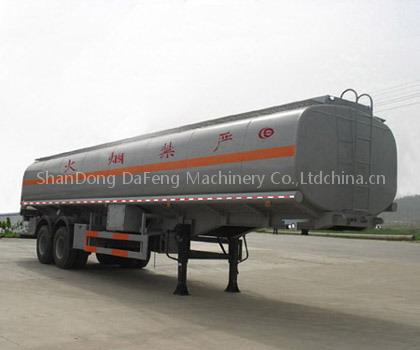

fuel tanker trailer

Body total weight(T);

10.5

Tanker Capacity:

40m3

Outside

Dimension L×W×H:

11000*2500*3950mm

Body thick:

5mm

Seal head thick:

6mm

Wheel Base (mm):

5060+1310+1310

Steel Spring Number:

10/10/10

Axle:

3 x13T FUWA brand

King pin:

90#

Discharge hole :

2 pieces x 3inch

Devide plate:

4 pieces

Tyre Specification:

12.00R22.5(The model is Triangle Vacunnm tire ),12 pieces

Rim:

9.00-22.5 Zhengxing brand

Chamber:

Four double and two single chambers

Support leg :

28T Tongyada brand

Tire carrier:

Two pieces

Tool box:

One
