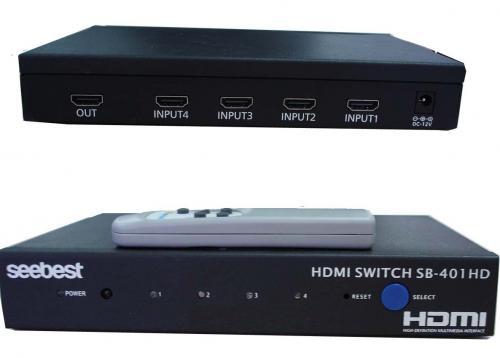

four inputs one output HDMI switch is a Telecommunications product. Key specs — Origin: China.
Product Description
2.Supports HDCP equipment.
3.Supports HDMI 1.3 version.
4.Have signal buffering and amplifier capacity.
5.Four inputs and one output.
6.Manual and remote control option.
7.Manual reset function.
8.Channel working display lamp on the panel, indicating send output signal when it light.
9.Simple to operate, safety and quick.
Item Type | SB-401HD |
Date total bandwidth | 6.75Gbps(max) |
Vertical scan frequency | 50-85Hz |
Input video signal voltage | 1.2 VP-P |
Output video signal voltage | 1.2 VP-P |
Input DDC signal voltage | 5 VP-P |
Digital audio output mode | T/PDIF |
Input/Output port | B type(19 pike female) |
Output Max. distance | In 15 meters |
Consumption | 15W(max.) |
Input voltage of adapter | AC 110~220V |
Output voltage of adapter | DC 5V/3A |
Dimension | 156x140x36(mm) |
