Product Description

CPCD30F Main Parameter

load capacitykg		3000
load centermm		500
power type		diesel
max.lifting speeds(with load)mm/s		400
max.driving speeds(with/without load) km/s		18/20
max.driving speeds(with/without load) kn		14.5/9.8
grade ability (with/without load)%		15/20
lifting heightmm		3000
free liftmm		80
tilting angles(forward-backward)		6/12
min.turning radiusmm		2450
min.right angle aisle width mm		2110
min.under-clearance		135
DIMENSION	overall length mm	3790
	overall width mm	1228
	overall height (mast lowered)mm	2110
	overall height (mast extend)mm	4250
overall height to overhead guardmm		2090
total weightkg		4320
fork widthmm		125
fork thicknessmm		45
backrest heightmm		1195
fork lengthmm		1070(1200)

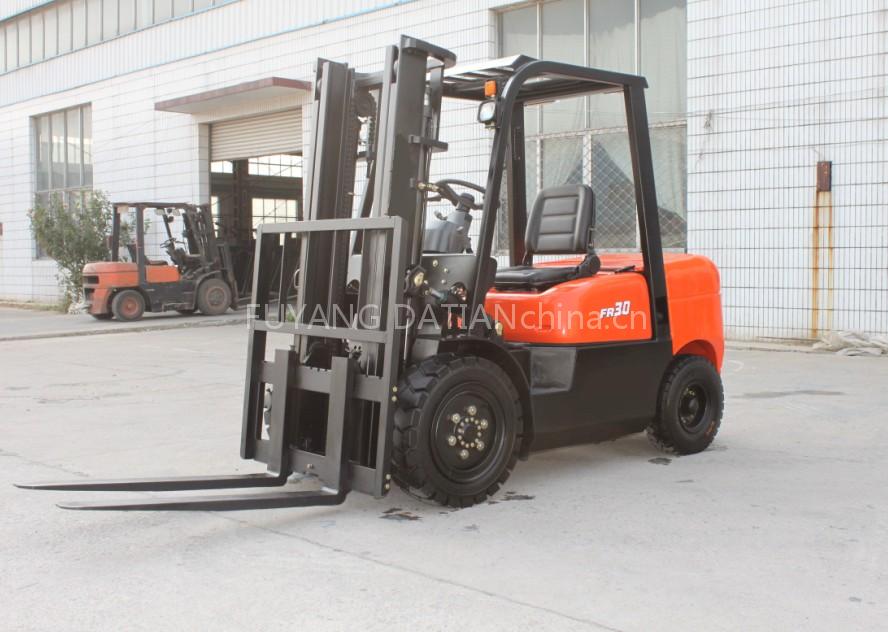

forklift truck -3ton/CPCD30

Specifications
