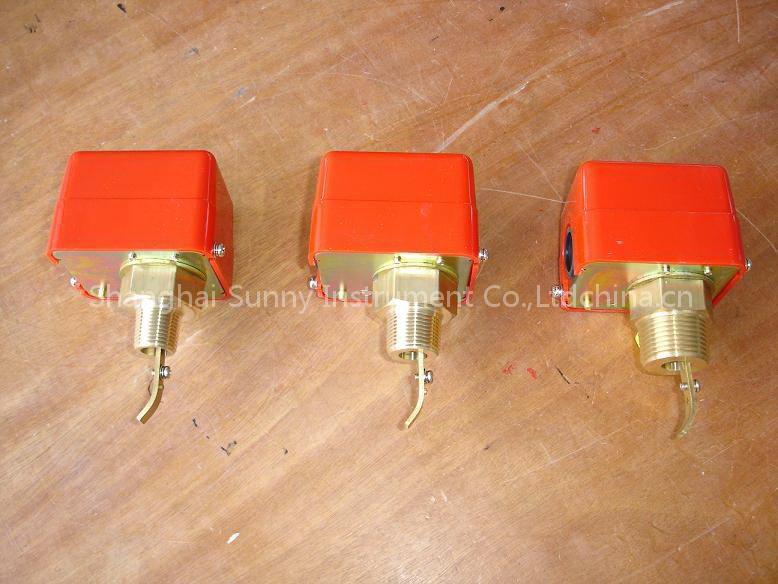

flow switch

FLOW SWITCH, flow sensor,paddle flow switches Specifications: Liquid Switches are Single-Pole-Double-Throw(SPDT) flow switches that are used in liquid lines carrying water, ethylene glycol, or other liquid not classified as hazardous.

They can be wired to energize one device or powered from the same source when liquid flow either exceeds or drops below the set flow rate.. The rate of the flow can be adjustable and it is stable Liquid temperature range: 0~+100 Max. Working Pressure: 13.5bar.

Flow switch can not be used where the liquid in the pipes will drop below the liquid's freezing point.. Product Flow Switch. Maximum Liquid Pressure 150psig()1034kpa... Minimum Liquid Temperature 32oF(16),..

Maximum Liquid Temperature 250oF(121) Electrical Ratings 120VAC 208VAC 240VAC 277VAC 24VDCHorsepower 1 1 1 - Full Load Current 16 8.8 8.8 - Locked Rotor Current 96 52.8 48 - Non-inductive Current 16 16 16 - Pilot Duty 125VA at 24/277VAC Wiring Connection Screw Type Terminals Pipe Connector 1",1.5" NPT Threads Type Connection size.

Range of required to actuate switch (L/min) Min. flow Max. flow Decrease of flow Increase of flow Decrease of flow Increase of flowZZS. 1 18 21 45 50 2001-1-2 30 35 100 105 2 50 58 150 155 2002-1-2 75 86 187 200 3 100 115 225 260.......
