floor spring

floor spring

Technical data

Design General design is suitable for opening the door

Single closing speed valve At 116°-0° to match different closing purposes.

Hydraulic oil Ensure the mechanical parts can operate smooth and flexibly at different temperatures.

Built-in valve Can prevent the destruction of floor spring or oil leakage from strong pressure and wind force.

90°degree auto-orientation Max opening at 116° non-hold on machine available if requested.

Adjustable axis Can be adjusted lelf and right,forward or backward,install easily and adapt to individual requestments.

Testing All floor springs have passed over 500,000 cycles test.

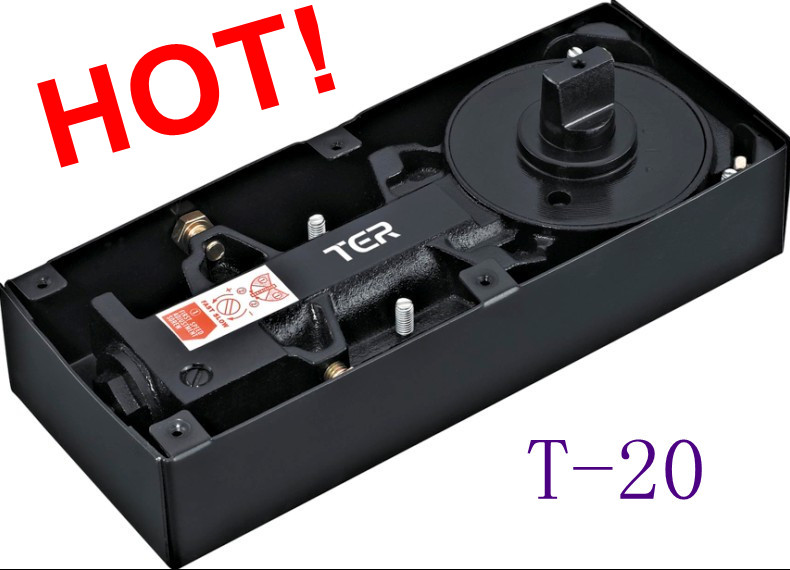

Floor hinges/Door hardware floor spring

Model number T-20

Body material casting iron

Cement container wrought iron

Plate finishing sand polished stainless steel

Maximum door width(mm) 800

Maximum door weight(kg) 75

Maximum open angle 116°

Hold-open angle 90°

Product weight(kg) 4

Product advantages

1.Suitable for all kinds of doors.

2.The unique design. 3.Certification:ISO9001:2000.

4.Lower priced than the competition.

Product price

1.The price is changeable because the price of material is unsteady,and if the order is large,we will give you discount.

2.Please don't hesitate to contact with us for its catalogue or price.

3.Please tell us which model number,color,size you are interested in.Then we will give you the quotation.

Factory

We are the manufacturer that specializing in manufacturing many kinds of hardware accessories such as glass door clamp,floor spring ,door closer,glass glue and so on.If you are interested in our products,please contact with us.We will try our best to meet your demands or produce as your request.
