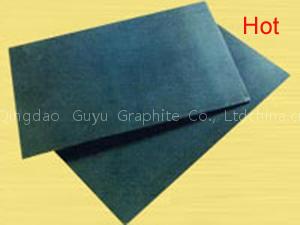

flexible graphite sheet, graphite tanged plate

Graphite sheet(roll) is made from high carbon content scale –likegraphite through chemical treatment ,expaning under high temperature andthen rolling.It is a basic material for making different kinds of graphite sealing parts.Main use:Formaking different kinds of graphitebelts, packings, gaskets, composite plates, cylinder gaskets,ect.Properties: Working temperature -200℃~3000℃(in Non-oxiding media); -200℃~850℃(in oxidizing media)Standard:JB/T 7758.2-2005 The main performance of flexible graphite roll/sheet Item Product parameters

Density Tolerance g/cm3 ±0.04

Thickness tolerance mm ±0.03

Carbon content % 99

Tensile strengthMpa 4.5

Compression ratio % >40

Rebound rate% >10

Ash% <0.8

Sulfur contentPPM <2000

Chlorine contentPPM <40

ProductSize:Width:≤1000mmand≤1500mmThickness: 0.2mmto10.0mmLength:asper thecustomers’requirement
