Listing ID#10165458
ModelPSD30-50
CategoryFirefighting Supplies
Quick answer
fire monitor is a Firefighting Supplies product. Key specs — Origin: China; Price Term: FOB.
Product Description

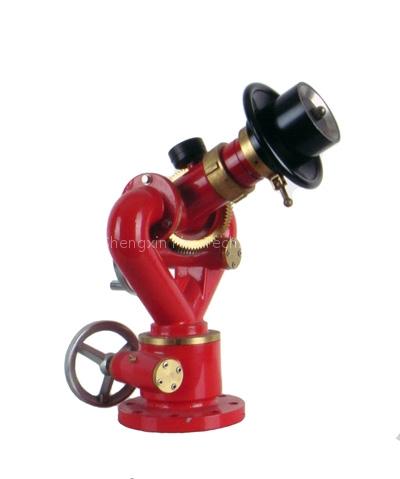

PSD Adjustable Fire Monitor has characteristic with adjustable flow rate, distant range and wide discharging the discharge range is also adjustable-----have both solid stream and fog stream. It can be installed in the places of flammable or explosive chemical circumstance, airport, oil area, oil transport wharf, shipyard etc. It is an efficient equipment for putting out fire, and it is also can be fixed on fire vehicles.
Specifications
Model | PSD20 | PSD30 | PSD40 | PSD50 | |
Rated working pressure(MPA) | 0.8 | ||||
Range of Working Pressure(MPA) | 0.5~1.2 | ||||
Flow Rate(L/S) | Water | 20 | 30 | 40 | 50 |
Range(M) | Water | ≥50 | ≥55 | ≥60 | ≥65 |
Pitching Angle(°) | -30 ~ +70 | ||||
Return Angle | 360 | ||||
Max. Spray angle (°) | ≥90 | ||||
Connections | (DN=100) Flange | ||||
Material | Aluminum Alloy | ||||
