export roots blower

1.ZYSR series Three Lobes Roots Blower Brief Intro.
ZYSR three lobes roots blower use advanced spiral inlet and outlet port and inner backflow technology. The inlet and outlet port of the chassis cut into above 20 degrees fixed spiral without instantaneous on and off . Therefore, the sound of operation is low and almost can’t test the discharging air pulsation.
2.ZYSR series three lobes roots blower features

Low noise.Spiral cut-in mode is adopted for shielded wire of intake air and air exhausted of case of blower.Triangular air inlet constructed by bright wire at the top of rotor is opened in sequence through rotation of rotor,avoiding instantaneous opening or closing of air inlet and air exit,resulting in extremely small running noise,almost no air exhaust pulsating movement.

High efficiency.Three lobes linear type is adopted for rotor,facilitating keeping mutual clearance between rotors,no need to consider slight axial change causing rotors mutually contact,just as rotor of spiral type,thus making efficiency further elevate.

Low vibration.As precise digital control machine tool is adopted for machine of rotor,and adopting high precision dynamic balance is adopted to conduct balancing,therefore there is almost no vibration for running of blower.

Long service life.High precision driving gear is adopted,which not only makes service life be longer,but also lower noise.

High quality.Components imported from Japan are adopted for all bearing and triangular belt,making product quality more reliable.

Non-pollution.Output clean air.Characteristic seal structure is adopted for lubricated locations of each transmission componet

3.ZYSR series roots blower applications

ZYSR series roots blower widely used in electricity,petroleum,steel industry,smelling,food,oxygen making,spinning,vacuum packing,paper making,aquaculture,sewage treatment,pneumatic conveying,etc.

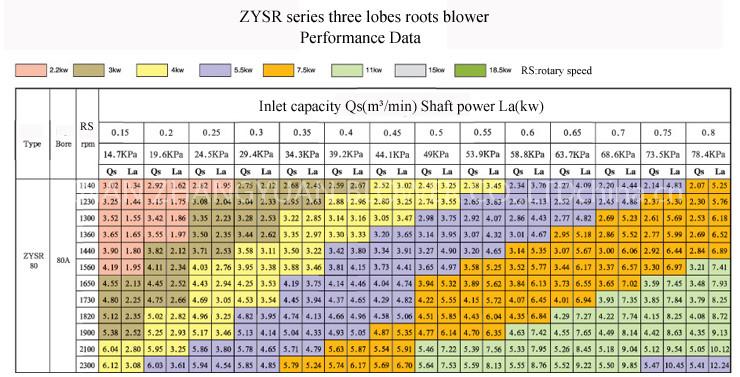

4.Three lobes roots blower major specifications

Bore:50-200mm Air Capacity:0.8-122.6m³/min

Pressure: 9.8-78.5Kpa Motor Power:0.75-300kw

Rotary speed:740-2130rpm

5.Standard Accessoriesall the blower are compact unit include Common Base ,V-belt cover,Blower Pulley,Motor Pulley,V-belt,Inlet Silencer(with air filter),Safety Valve,Pressure Gauge,Lubricating Oil,Anchor Bolt.

If you are interested,please contact us.We'll give you a high quality with lowest price for our first cooperation.
