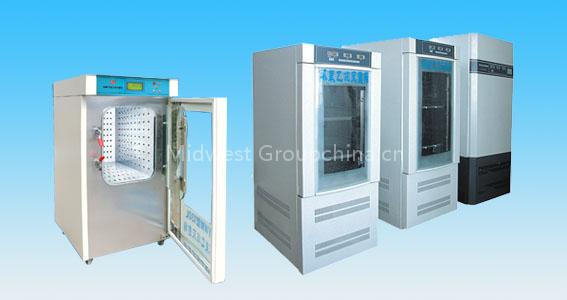

ethylene oxide sterilization

This product is ethylene oxide gas mixture, flame retardant, blast resistance, safe and reliable (automatic leak detection alarm, over-temperature alarm), no corrosion damage on the sterilized items, do not pollute the environment.Products using new technology, energy-saving effect, the heating time are short.Character dot matrix LCD display, simple, clear and easy Chinese menu operation, effective and reliable sterilization.According to different requirements of sterilization can be any combination of: temperature, pressure, sterilization time, the number of rows of residue.After six hours after sterilization treatment after discharge residual gas can be directly used for clinical, non-toxic and is also programmable continuous row residue.Power-down to save memory.(Unexpected power failure during the operation of the system, reconnect the power, the system saves the original parameters before power-down, continue to run) YWM series of ethylene oxide sterilization box Scope ● Medical supplies: surgical instruments, syringes, infusion sets, various catheters, birth control equipment. ● medical equipment: endoscope, cardiac pacemakers, artificial heart, medical calls, dialysis, suction, etc. ● hygiene products: women's sanitary napkins, disposable tableware health. ● Pharmaceutical: part of the traditional Chinese medicine and Western medicine, some cosmetics. ● Textiles and biological products: cotton fiber clothing, leather, blankets, brushes, etc.. ● Instrumentation: electronic equipment, optical instruments, telephone and so on. ● Other: RMB, tickets, medical records, files, correspondence, collection of historical artifacts, silk satin, animal specimens.

Features ● This product uses ethylene oxide gas mixture, flame retardant, blast resistance, safe and reliable (automatic leak detection alarm, over-temperature alarm), no corrosion damage on the sterilized items, do not pollute the environment. ● Products using new technology, energy-saving effect, the heating time is short. ● Character dot-matrix liquid crystal display, simple, clear and easy Chinese menu operation, effective and reliable sterilization. ● According to different requirements of sterilization can be any combination of: temperature, pressure, sterilization time, the number of rows of residue. ● after six hours after sterilization treatment after discharge residual gas can be directly used for clinical, but also programmable continuous row of non-toxic residue. ● Power-down to save memory.(Unexpected power failure during the operation of the system, reconnect the power, the system saves the original parameters before power-down, continue) Main technical parameters ● sterilization chamber volume: 30L, 60L, 130L, 150L, ​​200L, 300L, 350L, 500L, 600L, 800L, 1000L. ● Sterilization temperature: 25 ℃ ~ 65 ℃. ● Temperature accuracy: ± 3 ℃. ● Vacuum Pressure: 0 ~-70KPa. ● Sterilization time: any. ● When the control range: 0 ~ 99h. ● Supply voltage: 220V ± 10% 50Hz.

Sterilization box structure ● products for the vertical box structure, the electronic control box, sterilization room, the system control box. ● Electronic Control Box: A3 steel plate production from the shell, built with the motherboard. ● Sterilization room: from high quality stainless steel, the internal lining made of 304 mirror panels. ● System control box: the vacuum system, discharge residual system, heating system, purification system, water system and air filtration system.

LL Model internal cabinet size (Length × width × height) box external dimensions (L × W × H) volume (L) power (KW)
