Listing ID#10151324
ModelESCO
CategoryOther Construction Machinery

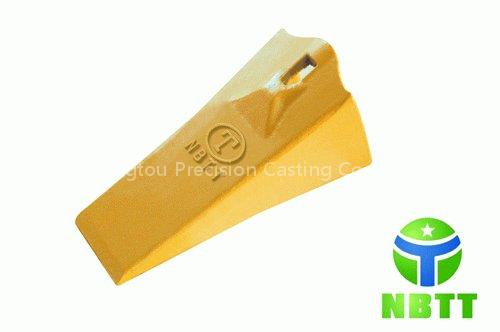

esco bucket teeth with pins
Specifications
- Brand
- NBTT, WSC
- Origin
- Ningbo, China
- Price Term
- FOB
Quick answer
esco bucket teeth with pins is a Other Construction Machinery product. Key specs — Brand: NBTT, WSC; Origin: Ningbo, China; Price Term: FOB.
Product Description
bucket teeth, esco 40s, 30s, super v series,v17,v19,v33,v39,v43,v51,v61,v69...
There are still many other items of esco bucket teeth and adapters.
Mechanical property of bucket teeth and adapter.
Material | Hardness | V-Norch | Tensile | Elongation | Yeild |
T1 | 47-52HRC | akv>=16J | >=1499Mpa | >=3% | >=1040N/mm2 |
T2 | 48-52HRC | akv>=20J | >=1500Mpa | >=4% | >=1100N/mm2 |
T3 | 48-52HRC | akv>=20J | >=1550Mpa | >=5% | >=1100N/mm2 |
There are still many other items of esco bucket teeth and adapters.
| ESCO | ||
| P/N | TYPE | MODEL |
| PC60 | Pin&Retainer | PC60 |
| 20X-70-00100 | Pin&Retainer | PC100 |
| 09244-02489 | Pin&Retainer | PC120 |
| 09244-02496 | Pin&Retainer | PC200 |
| 09244-02516 | Pin&Retainer | PC300 |
| 09244-03036 | Pin&Retainer | PC400 |
| 209-70-54240 | Pin&Retainer | PC650/750 |
| 21N-72-14330 | Pin&Retainer | PC1250 |
| PC300B | Pin&Retainer | PC300 |
| PC400B | Pin&Retainer | PC400/EC460 |
| 18-PN/18-LK | Pin&Lock | 　 |
| 22-PN/22-LK | Pin&Lock | 　 |
| 25-30-PN//25-30-LK | Pin&Lock | 　 |
| 35-PN/35-LK | Pin&Lock | 　 |
| 40-PN/40-LK | Pin&Lock | 　 |
| 45-PN/45-LK | Pin&Lock | 　 |
