engraving machine is a Advertising product. Key specs — Brand: RUILIPU; Origin: China.
Product Description

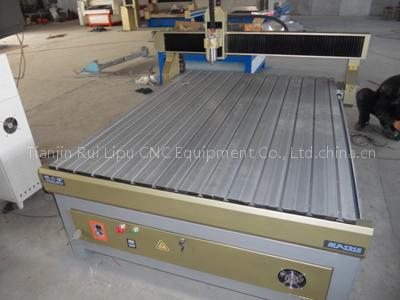

RLP-1318 Advertising engraving machine Application: 1. Advertising Industry: Advertising signs, logo making, acrylic cutting, suction-based modeling, a variety of advertising materials and the production of decorative products. 2.
Tooling industry: be engraved copper, aluminum, iron and other metal molds, as well as artificial marble, sand, plastic board, PVC pipe, wood and other non-metallic mold. 3. Other industries: can carve all kinds of video sculpture, relief, widely used in handicraft industry.
Features: â—† bed with a thick-walled welded, through VSR is made after the milling, deformation and rigidity. â—† 3mm thick aluminum tops, profiles, bending capacity, load-bearing capacity. â—† The computers main bearing part of the aluminum mold using thick profile finished form, driving accuracy, good stability, bearing a large, beautiful and generous appearance. â—† The machine is smooth transmission speed, high precision turning precision <0.05mm.
Resolution of 0.005 mm / pulse Spindle motor 1500 watt inverter Spindle motor maximum speed of 24,000 rev / min Shank diameter Φ3.175, Φ6 mm The maximum transfer speed of 13.0 meters faster / min 1300X1800X100 mm maximum size sculpture Dimensions 1750X2200X1250 mm Supply voltage 220V50HZ V / Hz Weight 750 kg Power 1.6 kilowatts
