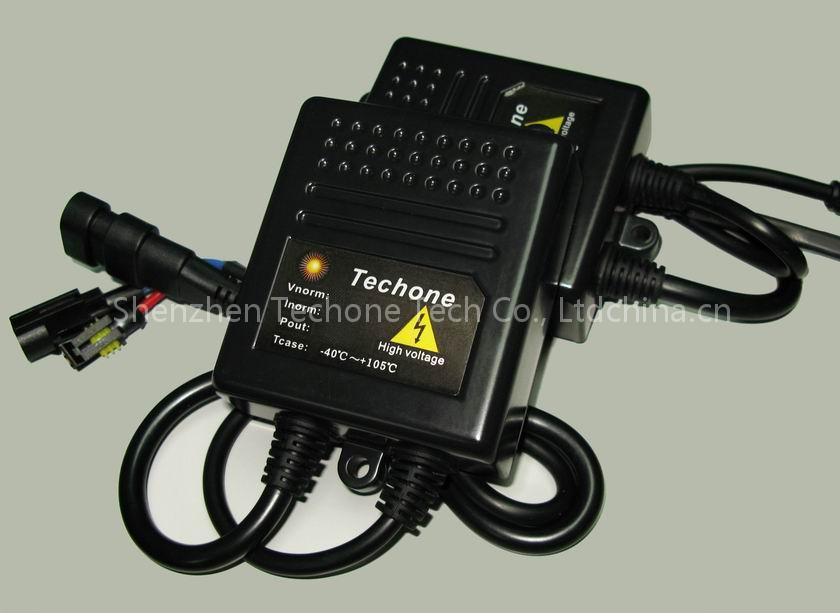

electronic ballast for solar lights
Listing ID#10013972
ModelHIDQQ35W/HIDQQ50W
CategoryBallasts
Ballasts

electronic ballast for solar lights

Specifications

Brand
TECHONE
Origin
shenzhen
Request Quote
Quick answer

electronic ballast for solar lights is a Ballasts product. Key specs — Brand: TECHONE; Origin: shenzhen.

Product Description

Model number HIDQQ35W/HIDQQ50W
Ventilation: Full-potted, no fan, waterproof
Specification Parameters
Strike voltage23~25kV
Required lamp voltage85~130V
Voltage input range 9Vdc~32Vdc
Rating V. In12/24Vdc
Input frequency 50Hz~60Hz
Power factor 0.99
Efficiency 93 %( Max)
THD 10%
Output power 50W
Current crest factor 1.5
Output frequency approx. 170 Hz
Protection of short circuitYes
Protection of open circuitYes
Protection of ignition failureYes
Protection of thermalYes
Protection of end of lamp life (EOL)Yes
Weight 0.8kg/1.9lb
Max. Lamp distance from ballast 15m/49ft
Operating temperature range -40~+105
Dimension (L X W X H) 88.5× 80× 37.5 (mm)
Max case temperature (T C) 105
Safety and regulation IEC61347
EMC EN55015
