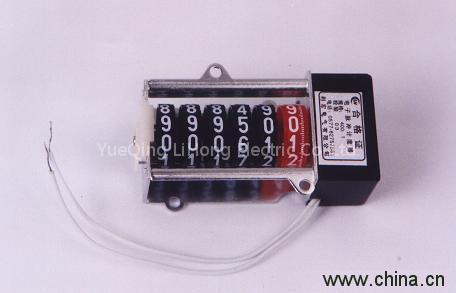

electromagnetic counters, stepper counter, impulse counter, wheel counter

1.Rating Working Voltage:4±0.5V;

2.Rating Working Pulse:≥100MS;

3.Rating Pulse Interval:≥50MS;
4. Resistance of Coll:430±5%ohm;(23;

5.Stepper motor Driving torque:30uNm;

6.Trouble-free period:≥1 billion pulse;

7.Rating working frequency≤3HZ

8.Highest working speed of counter:Step 6/sec;

9.Sepecification:5 integer with 1 decimal fraction;

10.Counter Ratio:201;401;801;1001;2001;4001;8001

11.Working temperature:-3070;

12.Fixing Size:upper--35×24.5mm;Underside-- 30.5×30.5mm.
