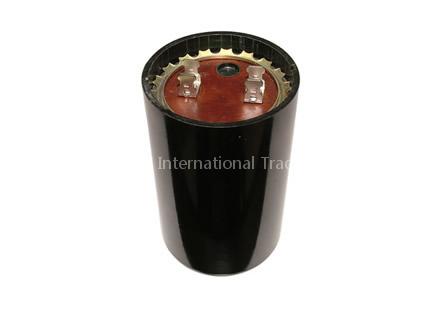

electrolytic capacitor is a Capacitors product. Key specs — Brand: reli; Origin: China (Mainland).
Product Description
Features and uses: Aluminum electrolytic capacitor is made according to American ANSI/EIA 463 standard, a new device developed, bakelite case, high class insulating, high strength, uneasy broken and good sealed Suitable for use in single-phase AC motors with frequency of 50 to 60Hz, voltage 110 to 330V AC to get high rotary torque at low starting current and also be widely for use in the high territory Technical specifications: Capacitance range: 21 to 1536MFD Rated voltage: 110 to 330 V AC Temperature range: -40 to 70 degrees C Testing voltage: T-T: 1.25Un 2s T-C: 2,000V AC and 10s Insulation resistance: T-T: ≥3,000M Ohms T-C: ≥1,000M Ohms Dissipation factor: tan ≤ 0.10 tan ≤ 0.15（20 degrees C and 100Hz） Capacitance tolerance: 0 to +20% (M) Case size: eight standard size from 1.43 x 2.75 to 2.56 x 4.365 inches Load life: according to the difference working voltage and capacitance, alternation 0.5 to 4 minute turn on 1 time for second, 12,500 to 50,000 times According to the ANSI/EIA 463 standard
