Listing ID#10063733
ModelDL6
CategoryValves
Quick answer

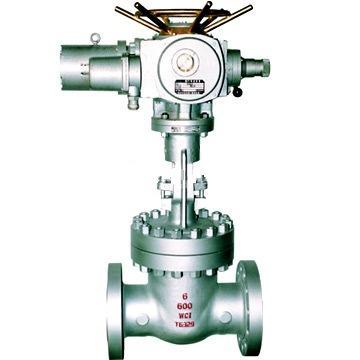

electric gate valve is a Valves product. Key specs — Brand: SHITONG; Origin: china.
Product Description
electric gate valve, motorized gate vavle, flange ends. Design & manufacture standard: API6D, API600, API603, ISO10434. Face to face dimensions: ANSI/ASME B16.10. Flange connection: ANSI/ASME B16.5 for NPS≦24〞, ASME B16.47A/MSS SP-44 for NPS>24〞. Butt-welding end dimensions: ANSI/ASME B16.25. Socket-welding dimensions: ANSI/ASME B16.11.
Inspection & test standard: API6D, API598. Pressure: 150Lb, 300Lb, 600Lb, 900Lb or PN 2.0MPa~PN 15.0MPa or JIS 10K, 20K. Nominal diameters: 2〞~ 24〞or DN50~DN600. Major materials: WCB, WC1, WC6, WC9, A105, CF8(304), CF8M(316), CF3(304L), CF3M(316L), etc. Driving styles: manual/electric/conical gear/pneumatic, etc.
