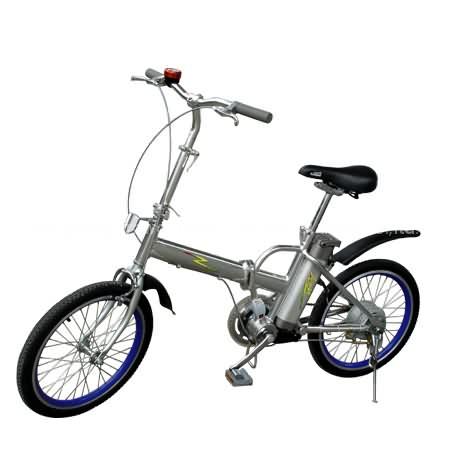

electric bicycle

Components

Frame : Al Alloy Foldable 6061 T6
Tyres : 20" x 2. 125", puncture resistant K-shield
Rim : Al alloy twin wall and CNC side wall
Spokes : 13g Stainless steel
Brakes (front): V-brakes
Gears : 6-class Shimano
Front fork : steel
Handle bars: Al Alloy
Head set : Water resistant headset
Chainguard: Polycarbonate
Mudguard : Polycarbonate
Chainwheel: Steel 44 T, Al alloy crank
Chain : Rust resistant chain
BB : Cartridge type
Stand : Al alloy side stand
Rear carrier :
Saddle : Cruiser saddle
Seat Post : steel
Lighting :

Electric System

Motor : 180-250w (EU) / 350-500w (USA) High Speed Brush(Brushless) Gear DC hub motor
Option: High Speed Brushless Gear DC hub motor
PAS Controller : Inner Intelligent Torque Sensor PAS
Pedaling Run/ Pedaling-Electric Assist Run
Option: Pure Electric Run Model
Overload protection, Low voltage protection
Battery : 24V 8Ah Ni-MH battery(EU) 29V 7Ah or 34V 7Ah Ni-MH battery(USA)
Option: 24V 10Ah or 36V 10Ah Li-ion battery
Charger : 2 amps smart charger. Charge time 4-6 hours

Performance

Maximum Speed : 25 km/h (EU), 35 km/h (USA)
Range : e-bike mode 20-25 km, PAS/Pedaling-Electric mode 45-55 km
Weight : Ni-MH battery - 3. 7 "kgs" Li-ion battery - 2. 8 "kgs"
N. W. /G. W. : 17/20kgs ( without battery)
Carton Size : 140*28*76cm
Capability : 96pcs/20 container 220pcs/40 high container
