egg laying block moulding machine

Jack Yao from Topall machinery welcome your inquiry. Topall, expert on concrete mixers,dumpers,block machines,concrete batching plants,vibrators,lifters,rollers and loaders. Jack Yao welcome your inquiry!

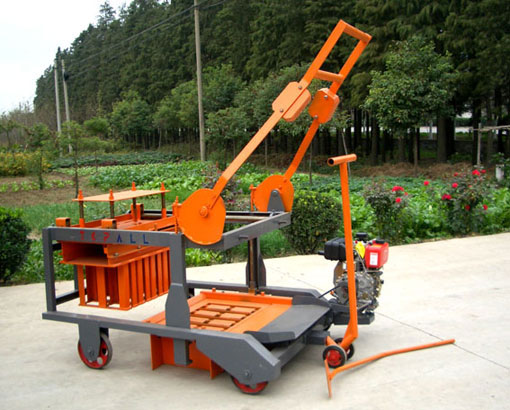

Model EBM3-6D(HS code 847480200) (egg-laying) is a mechanic concrete block (egg laying type). It can produce high density blocks on a concrete floor and can be moved manually to the next laying. Any type of concrete blocks can be produced with consistent quality by fixing different types of concrete mould and ram into the machine.

EBM3-6D (egg-laying) Block Moulding Machine The mould with the ram is lifted with manual lever. The mould is fixed with eccentric vibrator powered by diesel engine. It can produce three 9’- blocks or fix 6’-blocks per cycle.

Production In 8 Hours 9” Hollow Blocks 1000 pcs. 6” hollow blocks 1700 pcs.

Main Specifications EBM3-6D Power 7 hp Power Source Diesel engine Dimension 1750*1500*1700 mm Weight 650 kg

Shipping, Delivery & Maintenance 20’ container can be loaded with 8 units Minimum order: one container Delivery time 4 weeks after confirmation of the order
