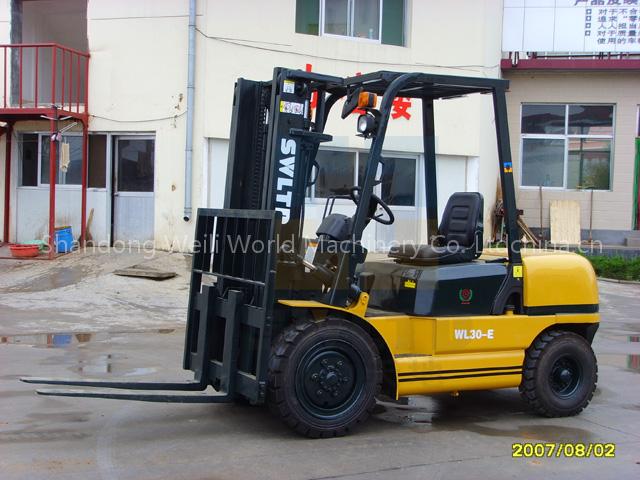

Name: easy moving loaders
SKU: CPC30

series number	category	project					Unite	parameter
1	survery	habitat					Shandong Qingzhou
2		model						CPC30
3		powerform					Diesel oil
4		load center distance					Kg	3000
5		load center distance					mm	500
6	basic size	lifts the altiude					mm	3000
7		the freedom lifts the altitude					mm	145
8		forks thetooth size				L x W x T	mm	1070 X 130 X 45
9		the goods fork the spacing				Min ·/Max	mm	290-1200
10		gate inclination angle				F/R	deg	6/12
11		first hangs is away from					mm	480
12		external dimensions				total length	mm	2885
13						always extends	mm	1230
14						gate does not lift the altiude	mm	2182
15						the gate frame lifts when alititude	mm	4040
16						safe frame altiude	mm	2160
17		most steep bank radius					mm	2540
18		minimum right angle channel width					mm	2490
19		the small right angle piles up the channel width					mm	3020+F+J
20	performance	spend		movie velocity(idling)			Km/h	21
21		spend		lifts the spend(full load)			mm/s	490
22		biggest climbing power					%	20
23		dead weight					Kg	4300
24	tire	tire	front wheel					8.25-12-12PR
25		tire	training wheel					6.50-10-10PR
26		gauge	front wheel				mm	1030
27		gauge	trailing				mm	974
28		spend of axies					mm	1760
29		smallest ground clearance					mm	120
30	power and trans-mission	accumulator cell			voltage		V/Ah	12/105
31		engine			model			490BPG-53
32					habitat		zhejiang new firewood power
33					output		Kw/r·p·m	37/2650
34					fixed torque		N·m/r·p·m	148/1900
35					number of cylinders			4
36					cylinder boreX traveling schedule		mm	90 X 100
37					air displacement		cc	2540
38					fuel-tank capacity		L	65
39					lowest fuel oil consumption rate		g/kw·h	238
40		transmission			Habitat		south central changsha transmission
42		transmission			files position(around)			3/2
43		working pressuer					Mpa	16

easy moving loaders

Specifications
