According to the weaving, polyester dryer fabric can be divided into 3-shed, 4-shed. According to the category, it can be divided into one and a half layer, double layer and rectangular wire fabric. According to the joining mode, it can be divided into insert, pin, pin ring and spiral ring join.

3-shed one layer and a half are suitable for drying papers below 70g.

4-shed double layer fabric is suitable for drying papers above 70g.

Rectangular wire dryer fabric is suitable for the fore several heating box of the drying zone, quality papers can use all.

WeavingÂ series &Types	ModelÂ ofÂ fabric	ThreadÂ Diameter Â (mm)		DensityÂ (thread/cm)		IntensityÂ (N/cm)			WeightÂ kg/m2	Thickness mm	AirÂ PermeabilityÂ (M3/m2h)
WeavingÂ series &Types	ModelÂ ofÂ fabric	Warp	Weft	Warp	Weft	AreaÂ ofÂ theÂ surface	Joining	JoiningÂ withÂ spiral	WeightÂ kg/m2	Thickness mm	AirÂ PermeabilityÂ (M3/m2h)
3-shed	22503	0.50	0.5	24	12	2000	1400	900	1.06	1.9	8000
	22453	0.45	0.45	24	13	2000	1400	900	0.99	1.7	8500
	24503	0.50	0.5	25	12	2000	1400	900	1.10	1.9	7000
	24453	0.45	0.45	25	13	2000	1400	900	1.02	1.8	6700
4-shed	20504	0.5	0.5	22	12	2000	1400	850	1.15	2.0	15000
	22504	0.5	0.5	24	12	2000	1400	900	1.26	2.1	12000
	24504	0.5	0.5	26	12	2100	1500	850	1

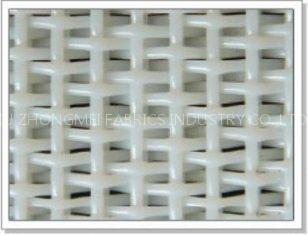

dryer screen mesh
