drilling rig

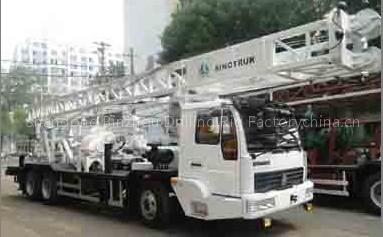

BZC-350B truck mounted drilling rig is designed by our engineers, a kind of truck mounted and rotary drilling rig; the special crane chassis of brand SINOTRUK , the transfer case, the main drive system, gearbox, sets of double-winch, mud pump, sewage pump,drilling tower are set up on the chassis;a rotary drilling rig with directional circulation, which is equipped with BW850/2A mud pump, It adopts the slurry as the washing fluid, it can drill on clay, sand and rock if it is equipped with a good drilling bit;a generator (15kw), it is convenient to illuminate or work at night;The master drive of rig is mechanical, the four landing legs and drilling tower are hydraulic controlled.

Transfer case, mud pump clutch system are air operated;mainly used for water well, construction, national defense building foundation, geological exploration, geothermic well and other foundation working, it is popular at home and abroad. (our websit: ) Drilling depth(M) 80 300

Drilling diameter(mm) 1500 500
