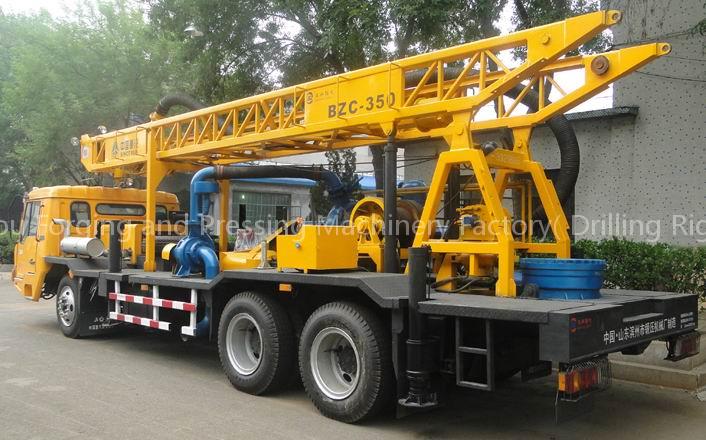

drilling rig is a Other Farm Machines product. Key specs — Origin: China (Mainland).
Product Description
Technical parameter | ||||||
Drilling depth(M) | 50 | 150 | ||||
Drilling diameter(mm) | 1500 | 500 | ||||
Speed of turntable(r/min) | 9.42;15.98;28.11;44.72;68.87;9(reverse) | |||||
Torque of turntable(KN.m) | 40.55;23.90;13.59;8.54;5.55;42.44(reverse) | |||||
Single rope lifting capacity of windlass(KN) | 30 | |||||
Lifting capacity of hook(KN) | 120 | |||||
Bearing capacity of mast (KN) | 150 | |||||
The height of mast (mm) | 9090 | |||||
Bearing weight(t) | 18 | |||||
Pipe | Kelly bar(mm) | 170 * 170 * 5000 | ||||
Assistant pipe(mm) | Ф168 * 8 * 3000 | |||||
Hydraulic pump | Model | CB-E532 | ||||
Pump delivery(ml/r) | 32 | |||||
Rater speed (r/min) | 2000 | |||||
Rated pressure (MPa) | 16 | |||||
Mud pump | Flux (m³/h) | 200 | ||||
Suction (m) | 7.5 | |||||
Delivery lift (m) | 32 | |||||
Speed (r/min) | 1450 | |||||
Power (KW) | 30 | |||||
Sewage pump | 6BS Sewage | Flux (m³/h) | 280 | |||
Suction (m) | 7.5 | |||||
Delivery lift(m) | 18 | |||||
Speed (r/min) | 730 | |||||
Power (KW) | 30 | |||||
Matching power | Diesel engine | Model | TBD226B-6â…¡ | |||
Rated power(KW) | 132 | |||||
speed(r/min) | 2300 | |||||
max torque | 650.m/1400-1500rpm | |||||
Truck chassis (16 ton crane) | Model | TAZ5191TXJ | ||||
Drive form | 6×4 | |||||
Engine | Model | TBD226B-6â…¡ | ||||
Rated power(KW) | 132 | |||||
speed(r/min) | 2300 | |||||
Size (L*W*H)(mm) | 11420*2500*2500 | |||||
The best working gear (or speed) | 5th gear(1000-1400r/min) | |||||
The highest speed(Km/h) | 75 | |||||
weight(kg) | 16830 | |||||
Transport size (L*W*H)(mm) | 11420*2500*3250 | |||||
Working size(L*W*H)(mm) | 11420*4290*10250 | |||||
