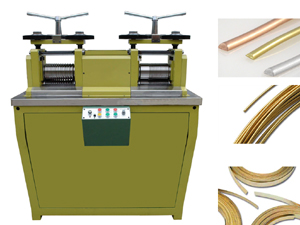

double head compression machine

Double wire compression machine (jewelry wire compression machine) 1).It is our second generation compression machine. It have improved on the technology.

2).our machine makes use of the transmission mechanism combined with the elevation of worm-gear and hob, and the Oldham coupling, substituting for the imperfect gear transmission that used to take among the counterparts.

3).Using the advanced technology of vacuum heat treatment,hardness degree is up to over HRC610 4).producing capacity: 100KG per day 5).Minimum compression line: 1mm*1mm 6).maximum compression line: 13mm*13mm 7).power:380V three phase four-line system 8).Power: high/low 4kw/3.5kw 9).compression wire type: solid round wire, flake, middle round 10).Diameter of compression wheel: 125mm 11).Ambient temperature: -3°to 40° 12).Ambient relative humidity:＜80% 13).automatic lubricating system durable the life of the parts 14).Wire compression machine suitable for material：silver ,gold ,platinum 15).working system of main engine:S1 system
