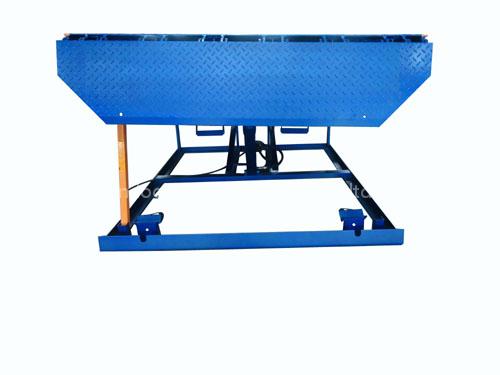

dock leveler is a Special Transportation product. Key specs — Brand: ambition; Origin: china.
Product Description
1.Normal length: 6, 8, 10 feet.
2.Normal width: 6, 6.5, 7feet
3.Normal leveling height:+450mmw-300mm
dock leveler
thickness of leveler board : 7.5mm, the thickness of lip board is 15mm.
2. Hydraulic system :Hydr-app brand (imported from Italy).
3.Open-style streamline hinged joint design can accommodate the lateral deflection accross the width of the trailer bed.
4.Leveler is supported by strut rod during maintenance and cleaning, which is safer and more reliable.
drawing is available.
6.Extra Manual pump: also available, price will be about 300USD different.
guard:two 3-fragment toe guards will close and open automatically to prevent the operator from stepping into the underframe accidentally.
8.There are special facility under the framework for the forklift to move it during handling. Also there are four rings on the leveler surface for the crane to move it.
9.Rubber Bumper:two rubber bumper are available ,dimension :400x200x100mm
10.Installation and troubleshooting manual:available. It will teach you how to install and analyze and remove the failure. Even non-professional know how to use and repair it under the guidance.
will adjust upward and downward automatically with the upward and downward movement of the trailer bed.
