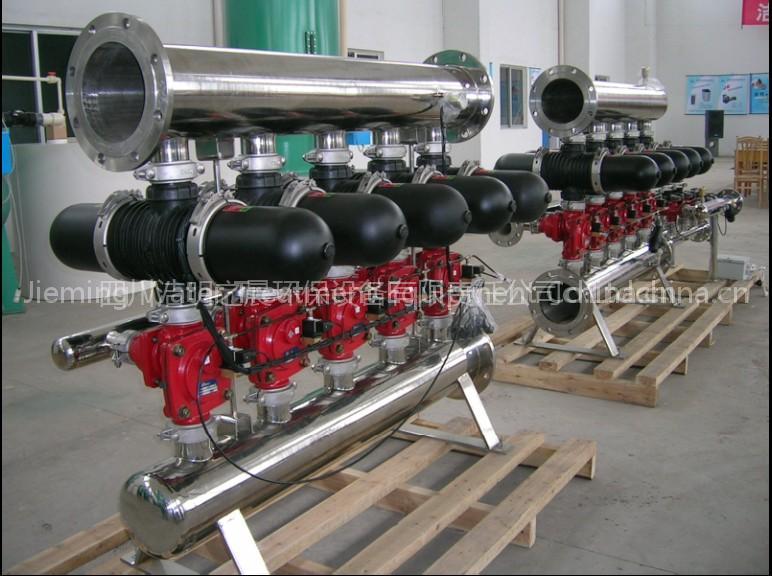

disk filter

1.precision:1.20u 50u 100u 130u 200u company has provided accessories:Filter Unit,Control valve,Differential manometer,two-three-way valve.

3.equipment control fundamental principle:Disk filter can be time or means to control pressure, to achieve fully automatic operation, time control devices that run a certain time after backwashing; pressure control the pressure difference between the use of import and export as a control signal, when the filter intercept a certain amount of suspended solids, the pressure loss will rapidly increase, when the pressure difference between inlet and outlet when the device reaches the set value is automatically backwash.

Pressure controller also has pressure, time, manual three control functions, can be manually backwash button. The system automatically when backwashing of each filter unit to coordinate anti-washing, Recoil in turn when the flush of each unit, each unit of the washing time is very short.

Recoil of the cell using other filter unit of the filtered water (or external flushing water recoil _ low water pressure only when the work), in the backwash of a filter unit when the unit does not have any other anti-washing, to ensure complete equipment, the stability of the water
