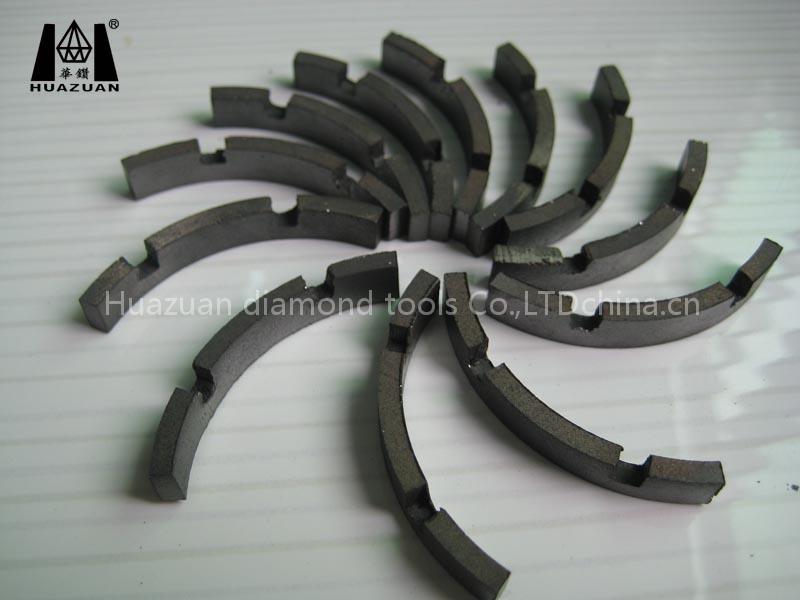

dimaond segment

Sliver welded,used for trimming & cuttinh slab edge,suitable for granite sandstone,kinds of stones wit advantages of smooth cutting,less chips ,long life and stable performance.

The following is the specification of Diamond Saw Blades & Segments for Granite & Hard Stone Cutting:

Dia.	Segment Dimension L × W × H	Steel Core Thickness	Segment No.
250mm	40×3.0×8/10	1.8/2.0	17
300mm	40×3.0/3.2×10/12/15	1.8/2.2/2.4	21
350mm	40×3.2/3.4×10/12/15/20	1.8/2.2/2.4	24/25
400mm	40×3.4/3.6×10/12/15/20	2.2/2.6/2.8	28
450mm	40×4.0×10/12/15/20	2.5/2.8/3.3	32
500mm	40×4.0×10/12/15/20	3.0/3.3	36
550mm	40×4.4×10/12/15/20	2.8/3.5	38
600mm	40×4.6×10/12/15/20	2.8/3.5	42
700mm	40×5.0x10/12/15/20	3.6/4.0	50
800mm	40×5.5x10/12/15/20	4.5	46

When place order for saw blades please inform the following:

Diameter (Inch or mm)

Inner Hole Size (Inch or mm)

Installation hole (If, need drawing)

Silent or None Silent Saw Blade

Segment No. (how many pcs segment per blade)

Segment Size (L x W x H, if possible please inform Steel Core Thickness)

Use of saw blade (For Granite, or marble, or limestone, or Sandstone. or other material)

Quantity NO. (How many pcs, or how many sets segments)

Machine Powder/RPM (If possible)

Expected Shipping Date

Special Requirements (If)

If only order segments please inform the following:

Diameter (Inch or mm)

Segment No. (how many pcs segment per blade)

Segment Size (L x W x H, if better to inform the Steel Core Thickness)

Use of saw blade (For Granite, marble, limestone, Sandstone. or other material)

Quantity NO. (how many sets segments)

Machine Power/RPM, Feed Speed, Normal Cutting Depth (If possible)

Expected Shipping Date

Special Requirements (If)
