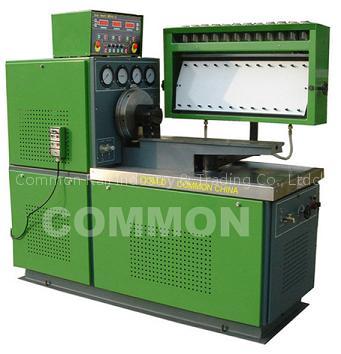

diesel pump test bench

>>>FUNCTIONS 1. Measurement of each cylinder's delivery at various rotation speeds; 2. Checking of each cylinder's injection time with static state; 3. Checking of the mechanical speed governors; 4. Checking of the electromagnetic valve of distributor pumps; 5. Checking of the pneumatic speed governors' positive pressure performance; 6. Checking of the pneumatic speed governor's vacuum performance; 7. Measurement of the reflux delivery of distributor pumps; 8. Measurement of the distributor pump's body internal pressure; 9. Checking of sealing of fuel injection pump body.>>>CHARACTERISTICS 1. Changing frequency changing rotation speed, low fall of rotation speed and high output torque; 2. Rotation speed, count and temperature are displayed in digits mode, and air pressure is displayed on the mechanical gauge; 3. Four kinds of rotation speeds presetting; 4. Constant temperature controlled; 5. Built-in air resource; 6. The functions of over voltage, overload and short circuit protection; 7. Operating position: arbitrary side of the two work sides of the test stand; 8. High measurement precision, ultra low noise.>>>TECHNICAL PARAMETERS
