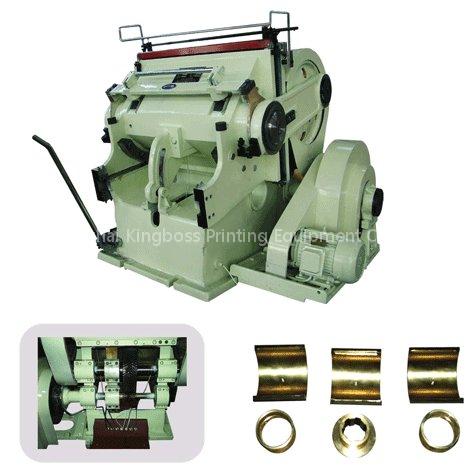

die cutting machine
Listing ID#10104058
ModelPYQ203
CategoryPackaging Machines
Packaging Machines

die cutting machine

Specifications

Origin
China
Price Term
FOB
Request Quote
Quick answer

die cutting machine is a Packaging Machines product. Key specs — Origin: China; Price Term: FOB.

Product Description

1. Bearing bush, eccentric bush, link bearing bush made by copper alloy, which is high pressure and durable. 2. Driving system with three gears, the pressure would be stable.3. Gear wheels, curve ring made by cast steel, the machine would be stable and high pressure.4. Electric Motor: Siemens or Zhengtai which quality are stable

SPECIFICATIONS MODEL PYQ401PYQ203PYQ1040PYQ1300PYQ1400PYQ1600
Working area of plate (L*W)650*480mm930*660mm1040*720mm1300*920mm1400*1000mm1600*1250mm
Speed (strokes/min)253253253201715
Mode of feedBy handBy handBy handBy handBy handBy hand
Motor Model Power2.2KW4KW4KW5.5KW5.5KW7.5KW
Distance between platens27mm27mm27mm27mm27mm27mm
Max total length of crease and cut15m25m30m30m50m55m
Weight2200kg3300kg4500kg5400kg6500kg7500kg
Overall dimensions (L*W*H)1480*1400
*1430		1780*1550 *17002070*1900*17502300 *1900
*1850		2300*1900
*1900		2300 *2200*160
