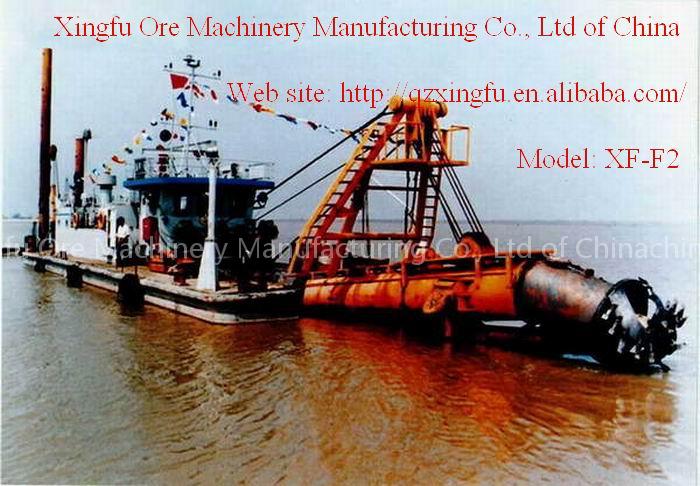

cutter suction dredger with output of
Specifications
- Brand
- Xingfu
- Origin
- china
- Price Term
- FOB
cutter suction dredger with output of is a Furniture Making Machines product. Key specs — Brand: Xingfu; Origin: china; Price Term: FOB.
Product Description
The specification of XF Cutter Suction Dredgers with output of 2000m3/h Item Parameter Remarks 1 The total length 32m 2 The length of the hull 23m 3 The total width 6.5m 4 The total depth of the hull 2m 5 The depth of the hull underwater 1.4m 6 Cutter power 80kw Hydraulic control 7 Suction Diameter (approx).
400mm 8 Discharge Diameter(approx) 400mm 9 The dredging depth 14m 10 Main power 650kw 1500r/h Model: JICHAI 8190 11 The discharge distance 500-1000m 12 The water flow of dredging pump 2000m3/h Model: Shijiazhuang 13 Volume of operating cabin (length*height*width) 2m*2.2m*2.5m 14 Weight of the anchor 260kg 15 Length of the steel rope 300m 16 Paint Anti-rust paint 17 Spare parts Welders, diesel engine tools, cutter teeth 18 Features 1.
Simple, rapid assembly and dismantling 2. Spare parts and floating pipe available 3. Transportable by road, rail or sea 4. Reliable hydraulic system 5. Fresh water engine cooling system 6. Efficient fuel consumption 7. Simple operation --- the most advanced PLC control system
