Name: crimped mesh
SKU: wire mesh

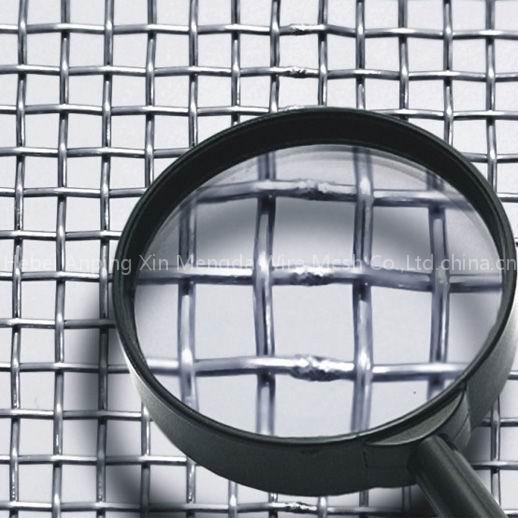

crimped mesh
Material: Iron wire.

Weaving Pattern: Weaving after crimping
General Use: Crimped wire mesh is used in screening in mine, coal factory, construction and other industries. Some galvanized crimped wire mesh and stainless steel crimped wire mesh are for roasting of flour food and meat.
nbsp

Specification List of Crimped Wire Mesh:

Wire Diameter (mm)	Aperture (mm)	Mesh	Length (M)	Weight (Kg)
4.00	40	0.58	30	142
4.00	30	0.75	30	182
4.00	25	0.87	30	213
3.2	25	0.87	30	141
3.2	20	1.1	30	169
2.6	20	1.12	30	116
2.6	18	1.23	30	127
2.6	15	1.44	30	173
2.0	15	1.49	30	92
2.0	12	1.8	30	110
2.0	10	2.12	30	127
2.0	8	2.54	30	155
1.8	7	3	30	149
1.8	6	3.25	30	161
1.6	7	3	30	117
1.6	6	3.35	30	131
1.6	5	3.85	30	150
1.6	4	4.5	30	176
1.6	3	5.5	30	215
1.4	6	3.5	30	105
1.4	5	4	30	120
1.4	4	4.7	30	140
1.2	8	2.7	30	59
1.2	7	3.1	30	68
1.2	6	3.5	30	77

Wire Diameter (mm)	Aperture (mm)	Mesh	Length (M)	Weight (Kg)
1.2	5	4	30	88
1.2	4	4.9	30	99
1.2	3	6	30	132
1.0	6	3.6	30	55
1.0	5	4.25	30	65
1.0	4	5	30	76
1.0	3.2	6	30	92
1.0	3	6.35	30	97
1.0	2.18	8	30	122
0.8	2.83	7	30	68
0.8	2.38	8	30	78
0.8	2.2	8.5	30	83
0.8	2	9	30	88
0.8	1.75	10	30	98
0.8	1.5	11	30	108
0.8	1.3	12	30	118
0.7	1.4	12	30	90
0.7	1.84	10	30	75
0.6	1.21	14	30	77
0.6	1.52	12	30	66
0.6	1.94	10	30	55
0.5	1.3	14	30	54
0.5	1.09	16	30	61
0.5	0.9	18	30	69
0.5	0.77	20	30	76

We hope you kindly enquiry,if you want to get the quotation,please offer the specifications.
thanks!
