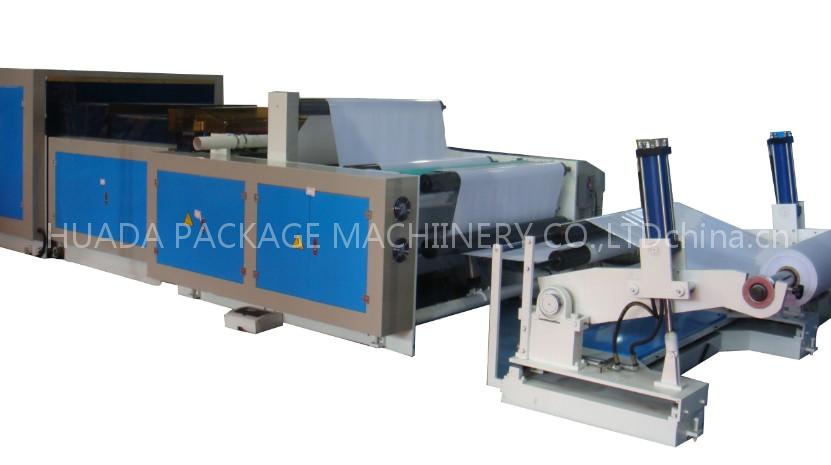

copy paper cutting machine
Specifications
- Origin
- China
- Price Term
- FOB
copy paper cutting machine is a Business Services product. Key specs — Origin: China; Price Term: FOB.
Product Description
Feature: 1. This machine adopts the servo motor to control the fixed-length cutting, is equipped with the photoelectric, Correction, tracing modifying system.
It can do crosscutting and Vertical cutting at the same it can trace feeding institution with the products,blowing& absorbing transportation at same time, automatic collecting, Robert automatic folding materials and cross transport to worktable. 2.
Drive System use pneumatic system, Photoelectric sensor to control, folding materials system use air and oil pressure to improve equipment..This machine integrates photoelectric,liquid and gas as a whole, PLC touching screen, and has the features of easy operation,high-precision cutting,state operation and low noise. 3.
The machine has the fenture of the motor frequency speed adjustment, automation counting, giving an alarm when stop and tension with digital indication. 4. All transitional rollers can be done in client’s opinions to avoid surface injure. 5. This machine is very important to Scratch of Gloss photo paper. 6.
We designed the air compress transport system Main Teachnical Data: Cutting Size A4(210*297) Size Precision ±0.2MM The accuracy ±0.2MM Trimness (20-100pcs) Width ±0.15MM Length ±0.2MM(fixed-length) maximum Width of raw materials 1300MM maximum diameter of raw materials 1200MM(Max.weight:1.2ton) Speed 70pcs/min Max.Stack Height 30-40MM Paper tube core Inner Dia.
3”=Ä€76.2MM source of air pressure 0.4-0.6Mpa Work Voltage 380V Total Power 13kw(Except air pressure power:11kw,1.6m2 ) Weight 3.5ton Cutter Timing Belt 1320*35*8M=1:1 Main Cutter Motor â–³Belt A Model 684 =2pcs Servo Motor Synchronous Belt 1040*35*8M =1pcs Circular knife Synchronous Belt 560*20*8M =1pcs Backup Roll Motor â–³Belt A Model 1050=2pcs 890=2pcs Reducing motor A Model â–³Belt Transporting â–³ Belt 1270=2pcs Transporting â–³ Belt 737=2pcs Transporting â–³ Belt 864=2pcs Robot Synchronous Belt 2104*30*8M=2pcs Synchronous Machine Synchronous Belt 969*40*8M Conveyer Belt (L*W*H) 2150*30*3=12pcs 3330*290*3=1pcs 6150*300*3=1pcs
