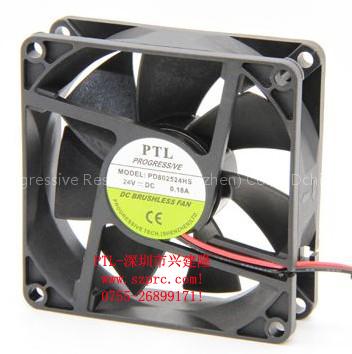

cooling fan 8025 DC fans is a Business Services product. Key specs — Origin: China.
Product Description
Size: 80*80*25mm Bearing: sleev Operating temperature: (-30℃~75℃) Insulation resistance: 10meg Ohm 500VDC Dielectric strength: 5mA 500VAC 60 Hz 1 min.
Function: auto-restart f requency generator or rotation detection signal option PTL 40X40X10mm 5v/12v/24v dc cooling fan PD4010 1 Frame size(mm) 40X40X10 2 Bearing type hypro bearing,1B1S,ball, sleeve bearing 3 Rated voltage 5V,12V,24V 4 Rated speed 4200~6000RPM 5 Max air flow 6.7CFM 6 maxiam pressure 2.54mmAq 7 Maxiam noise 25dBA 8 Functions by impedance,by IC,by IC with FG,by transistor with FG,PWM+FG 9 safety approvals CE,TUV,UL,cUL 10 Electric Strength 5mA msx at 1500VAC for 1 min between lead wire and frame 11 Insulation Resistance 10M ohm between lead wire and frame(DC 500V) 12 Life Expectancy(Ball bearing) 70000hrs min at 40 degree C/L10 relative humidity 65%20% 13 Life Expectancy(Hypro bearing) >40000hrs min at 40 degree C/L10 relative humidity 65%20% 14 Operation Temperature -10~75 degree C(+14~167 degree F),normal; -10~90 degree C(+14~194 degree F) 15 Storage Temperature -40~75 degree C(-40~167 degree F 16 Protection Motor protection and polarity protection 17 Lead wire UL1571 AWG28,30; UL1007 AWG24,26; UL1061 AWG26 18 Plastic Material Black PBT (UL94V-0) glass fiber
