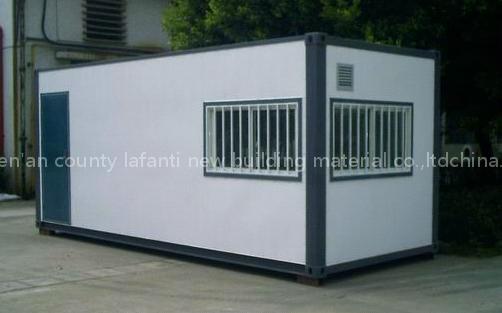

container house

They arewidly use in construction site,temporary office and can design them to domitory,office,shop,washingroom,kitchen and workshop as per customers requirment.

Dimension:

External length/inner length:6055mm/5835mm

External width/inner width:2435mm/2215mm

External height/inner height:2590mm/2300mm

Other dimensions as per your requirment.

Steel frame:

Material:cold formed steel profiles in 3.5mm thinckness.

Surfacefinished: sand blasted in a quality of Sa2.5,epoxy ground coat in30-40µm thinckness and final vinyl acrylic coat in 60-70µm thinckness.

Floor

Girding structure:40*80*1.6mm square steel pipe.

Damp proof steel panel:1.5mm thinckness

Water proof polywood panel: 18mm

Glued final floor covering: Korea LG floor leather.

Permitted loading:280kg/m2

Coefficient thermal conductivity: 0.46w/m2.k

Roof

Girding structure: 40*30*2mm square steel pipe

External waterproof panel: color steel panel in 0.5mm thinckness.

Internal ceiling: sandwich panel of 75mm EPS. The both surface is fireproof panel,with PVC

ceiling.

Permitted loading: 120kg/m2

Coefficient of thermal conductivity:0.42w/m2.k

Wall

Wall panel: sandwich panel of 75mm EPS with both surface of fireproof panel,with PVC ceiling.

Permitted loading: 100kg/m2

Coefficient thermal conductivity: 0.44w/m2

Doors and windows:

The materials and dimension as per your requirment.(Aluminium,Alloy window or plastic steel windows)

Bathroom:

It will be equipped with one toilet bowl,one wash basin,one shower can offer others if you need.

Kitchen:

We can offer one kitchen cabinet. We can provide as per your requirement.

Inner facility:

Wecan offer all the bathroom and kitchen facility(including toiletbowl,wash basin,shower). Also electricity facilities(includingswitch,socket,wire and lamps)

Packing:

One 40HC can hold 6 units.
