Listing ID#10155205
ModelSC100-SC200
CategoryVehicles & Transportation

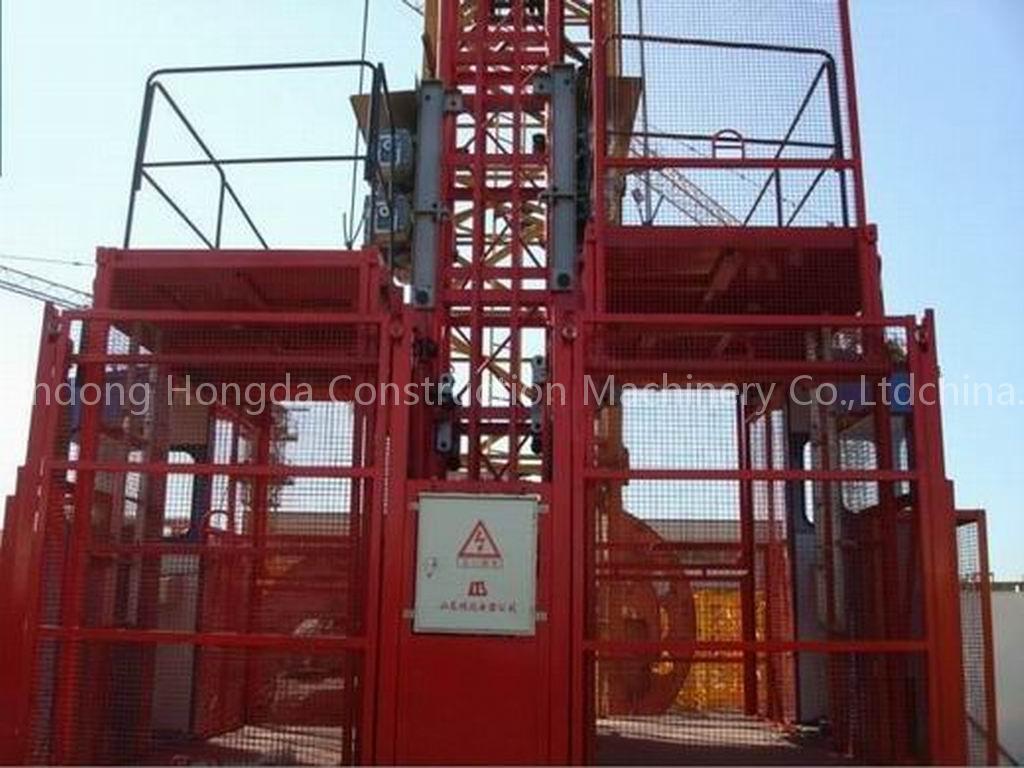

construction elevator,building lifter
Specifications
- Brand
- TIELISHI
- Origin
- China
- Price Term
- FOB
Quick answer
construction elevator,building lifter is a Vehicles & Transportation product. Key specs — Brand: TIELISHI; Origin: China; Price Term: FOB.
Product Description
Our company is a professional construction machinery manufacturer with 25 year's history. Our company has passed the ISO9000 International Quality System Certification, the CCC Certification and the CE Certification. We offer SC series of building lifter. The lifter has such advantages as steady property, safety, reliability,flexible carrying,and good adaptability,etc.,improves working efficiency,and can reduce workers' working intensity.
SC series of building lifter main technical parameters
| Parameter | SC100 | SC100/ 100 | SCD200A | SCD200/200A | SC200 | SC200/200 | SC200P | SC200/200P |
| Rated loading capacity (kg) | 1000 | 1000/1000 | 2000 | 2000/2000 | 2000 | 2000/2000 | 2000 | 2000/2000 |
| Rated lifting speed (m/min) | 36 | 36 | 36 | 36 | 36 | 36 | 0-56 | 0-56 |
| Rated passenger number | 12 | 12/12 | 24 | 24/24 | 24 | 24/24 | 24 | 24/24 |
| Engine power | 2*11 | 2*2*11 | 2*11 | 2*2*11 | 3*11 | 2*3*11 | 3*18.5 | 2*3*18.5 |
Cage | 3*1.3 *2.5 | 3*1.3 *2.5 | 3*1.3 *2.5 | 3*1.3 *2.5 | 3*1.3 *2.5 | 3*1.3 *2.5 | 3*1.3 *2.5 | 3*1.3 *2.5 |
| Cage weight (kg) | 1400 | 1400 | 1400 | 1400 | 1400 | 1400 | 1400 | 1400 |
| Mast section weight (kg) | 163 | 163 | 163 | 163 | 163 | 163 | 163 | 163 |
| Mast section dimension (mm) | 650*650 *1508 | 650*650 *1508 | 650*650 *1508 | 650*650 *1508 | 650*650 *1508 | 650*650 *1508 | 650*650 *1508 | 650*650 *1508 |
| Counterbalance weight (kg) | 1200 | 1200/1200 | ||||||
| Hanger rated lifting capacity (kg) | 180 | 180 | 180 | 180 | 180 | 180 | 180 | 180 |
| Bottom outline dimension (mm) | 3100*4200 | 3100*4200 | 3100*4200 | 3100*4200 | 3100*4200 | 3100*4200 | 3100*4200 | 3100*4200 |
