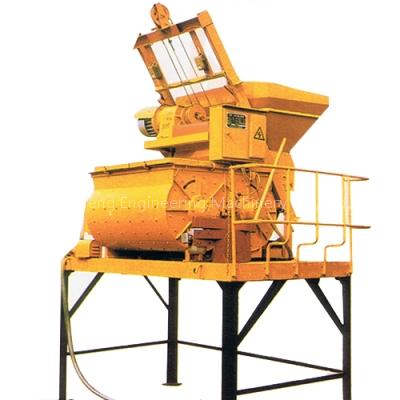

concrete mixer/ mixer

JS series concrete mixer of Jinan Hengsheng Engineering Machinery is twin horizontal shafts forced mixer. Combining advantages of single unit stand-alone operation and simple concrete batching plant with PLD series batching machine, the unit can work in concrete mixing station for prefabricated-component factories of various sizes and construction of highway, bridge, water conservation and dock etc. It can mix no-slump concrete, plastic concrete, liquefied concrete, lightweight aggregate concrete and various mortars, as a widely used high efficiency model.

This series product is reasonable in structure, novel in layout and convenient in operation and maintenance. The height of supporting legs is designed as 1500-4500mm for JS350-3000. Tipper car, self-dumping truck and mixer truck can be used by user. The product can be customized upon user’s request.

Parameter?

		JS350	JS500	JS750	JS1000	JS1500	JS2000	JS3000
feeding capacity?L?		560	800	1200	1600	2400	3200	4800
discharge capacity?L?		350	500	750	1000	1500	2000	3000
productivity (cbm/h)		≥17.5	≥25	≥35	≥50	≥75	≥100	≥150
maximum aggregate size?gravel/crushed stone?		60/40	80/60	80/60	80/60	80/60	80/60	80/60
agitator blade	rotation speed(r/min)	35	35	30.5	25.5	25.5	23	18.88
	quantity	2×6	2×7	2×8	2×8	2×10	2×9	2×10
agitating motor	type	Y160L-4	Y180L-4	Y200L-4	Y225S-4	Y225S-4	Y280S-4	Y280M-4
	power (kw)	15	18.5	30	37	45	75	2×55
hoisting motor	type	YEZ112M-4-B5	YEZ132S-4-B5	YEZ132M-4-B5	YEZ160S-4	YEZ180M-4	YEZ180L-4
	power(kw)	4	5.5	7.5	11	18.5	22
pump	type	50DWB20-8A		65DWB-35-5	KQW65-100(I)	KQW65-100(I)	CK65/20L
	power(kw)	0.75		1.1	3	3	4
hopper lifting speed?m/min?		18	18	19.2	21.9	23	26.8
overall dimensions length×width×height(mm)	transport state	2850×2300×2680	3050×2300×2680	4146×2300×2800	4640×2250×2250	5058×2250×2440	5058×2250×2616
	working state	4461×2850×5225	4461×3050×5225	5930×3050×6260	7730×4533×7300	9270×3436×8615	10147×3870×10726
overall weight?kg?		3700	4000	6800	8700	11130	15000	13300
discharge height?m?		1.5	1.5	1.5	2.7/3.8	3.8	3.8	3.8
