concrete mixer , concrete batching plant,concrete batch plant

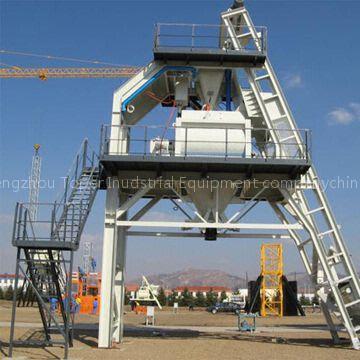

HZS series concrete batching plant is a full automation complete equipment with high precise microcomputer control system as well as single manual control, made up of the burdening stirring electrical control system. Besides, the machine is equipped with matching memory difference auto compensation and printing system, and so it can complete production automatically.

This equipment applies to the concrete construction for industry and civil construction, such as highway railway bridge workplace air port and so on.

Product characteristics:

1. Adopt JS series double-horizontal-shaft forced type concrete mixer with better stirring quality and higher efficiency.

2. With modular organization, it is easy to be installed and moved.

3. Adopt electronic weight to measure the aggregate powder liquid material With the imported components, the electrical control system has many advantages, such as reliable performance easy to operate .

Main Parameter Model: HZS25

Capacity: 25m3/h

Discharging Height: 3800mm

Twin Shaft Mixer Model: JS500

Capacity ≥25 m3/h

Charging Volume: 800L

Discharging Volume: 500L

Max .Aggregate Diameter: 60~80 mm

Batching Plant Model: PLD800

Capacity≥48 m3/h

Sorts of Aggregate: 2/3

Measuring System

Cement Precision ≤1%

Aggregate Precision≤2%

Additives Precision≤1%

Water Precision≤1%
