Listing ID#10135905
ModelQY10-165/6-11
CategoryPumps & Parts

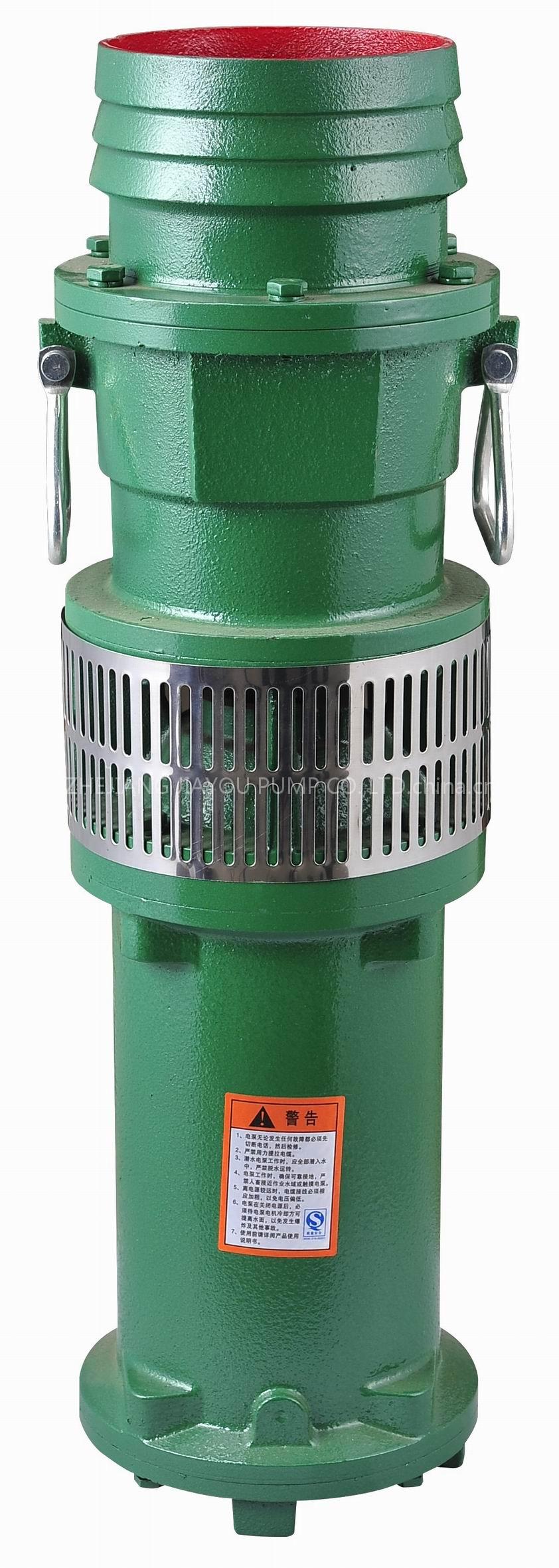

colliery pump
Specifications
- Brand
- JIAYOU
- Origin
- Made in China
- Price Term
- FOB
Quick answer
colliery pump is a Pumps & Parts product. Key specs — Brand: JIAYOU; Origin: Made in China; Price Term: FOB.
Product Description
series oil pump
2.CE,CCC,ISO 900:2000 approved
up to 60m
up to 40m3/h
5.Compact structure,small size
2.CE,CCC,ISO 900:2000 approved
up to 60m
up to 40m3/h
5.Compact structure,small size
The instruction of QY series oil pump:
QY series oil pump is composed of three parts:pump body,sealer and pump body is installed at the motor,three phase as ynchronous motor, is installed at the downside.Double sides between pump and motor are sealed with merchanical sealer,which is O-type oil resistant rubber as stationary seal.
Scope of application of QY series oil pump:
The QY series oil pump can be applied to many diatant areas,especially in draining water of water conservancy engineering,underground engineering,mine,water tower,lifting water from the well and pump off water of fundmental engineering working areas.
| Model | Rated.flow | Rated.head | Frequency | Speed | Power | Outlet size | Voltage |
| (m³/h) | (m) | (HZ) | (R/min) | (KW) | (inch) | (V) | |
| QY6-80/4-4 | 6 | 80 | 50 | 3000 | 4 | 2 | 380 |
| QY15-52/4-4 | 15 | 52 | 4 | 2.5 | |||
| QY6-115/5-5.5 | 6 | 115 | 5.5 | 2 | |||
| QY15-72/5-5.5 | 15 | 72 | 5.5 | 2.5 | |||
| QY10-115/5-7.5 | 10 | 115 | 7.5 | 2 | |||
| QY15-95/5-7.5 | 15 | 95 | 7.5 | 2.5 | |||
| QY10-165/6-11 | 10 | 165 | 11 | 2 |
