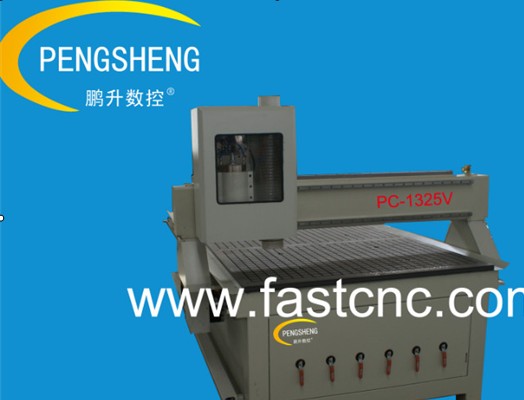

cnc router PC-1325V
Specifications
- Origin
- China
- Price Term
- EX-Work
- Payment Term
- T/T
cnc router PC-1325V is a Machinery Processing Services product. Key specs — Origin: China; Price Term: EX-Work; Payment Term: T/T.
Product Description
Feature: 1.Whole machine is welded with seamless steel structure,the stability is excellent, not easy to be deformed. 2.The Spindle equipment is the first brand of the world, 3.0KW China domestic made water cooling spindle.
3.Three axes adopt imported high precision Taiwan square orbit;X and Y axes adopt rack and pinion transmission,fast working,high efficiency and low cost;Z axis adopts Taiwan ball screw,with high precision and long life time. 4. Well compatibility:CAD/CAM designing software e.g. Type3/Artcam/Castmate/Wentai etc. 5.
Has the function of re-carving after break point and power failure. 6. Has the function of forecasting process time. 7.Adopting advanced DSP system with USB connection,operated with the handle,convenient operation. Our engaber can completely work off-line and do not take any computer resources. 8.Has dust-collect function.
It will clean up the carving residuum and make the operations tidier and more convenient. 9. Auto oiling system10. China domestic no oil vacuum pump, also can equipped with different vacuum pumps according to customers requirements.11. Advanced design of the machine make sure strong cutting and grarantee the engraving precision.
Technical Parameter: Model PC-1325V X.Y working area 1300mm*2500mm Z working area 200mm Table size 1480mm*3000mm Resolution 0.02mm X,Y structure Rack and pinion transmission Z structure Taiwan ball screw Max speed 30m/min Spindle power 3.0kw Spindle rotating speed 0-24000r/min Cooling mode Water cooling Working voltage AC380V/50/60 Hz ,3PH Drive Motor Stepper Command G code*.u00*.mmg*plt Operating system DSP(with separate operation cabinet) Interface USB Flash Memory 128M Diameter of cutter 3.175--12.7 Work-holding By suction Net weight 1200kg
Applicable industries:Wood processing:processing of various furniture such as door,window,cabinet,craft wood door,screen and so on.Advertisement:engraving and cutting various labels and number plate.Art craft:engraving characters of any languages and graphics on gifts and souvenirs.Applicable materials:Wood,aluminum board,plastic,density board,wave board,PVC,acrylic,crystal,light marble and other nonmetal materials and light metal materials.
