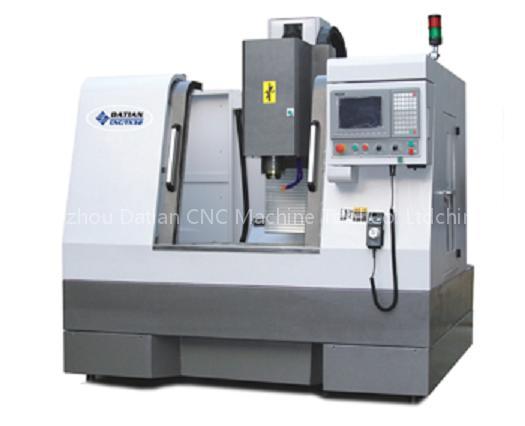

cnc milling machine
Specifications
- Brand
- Datian/DATAN
- Origin
- Zhejiang
- Price Term
- FOB
cnc milling machine is a Other Farm Machines product. Key specs — Brand: Datian/DATAN; Origin: Zhejiang; Price Term: FOB.
Product Description
Model NO. | CNC/TX32Z |
worktable(L*W) (mm) | 850*320 |
Max load on table(kg) | 150 |
X,Y,Z axis travel (mm) | 500*300*360 |
Spindle nose to worktable (mm) | 400 |
Spindle centerline to column (mm) | 300 |
Spindle Taper | BT40 |
Spindle Speed (rpm) | 265-1815 |
Max gearbox ratio | 6 speed |
Max torque(N.m) | 93 |
Spindle motor power (Kw) | 2.2/1.5 dual speed motor |
Tool change type | Manual/semi-automatic |
mini display unit (mm) | 0.01/0.001 |
Triaxial motor (torque/power)(N.m/kw) | Stepping motor 16N.m/1kw servo motor |
Ball screw types | φ32xP6 ball screw |
Processing for | Tapping &drilling with low speed and high torque |
Machine weight(kg) | 1800 |
Overall dimension(L*W*H) | 1500*1600*2000 |
ATT :the worktable of CNC TX32 series machines can be lengthened(higher column),suitable for processing longer and higher work piece | |
